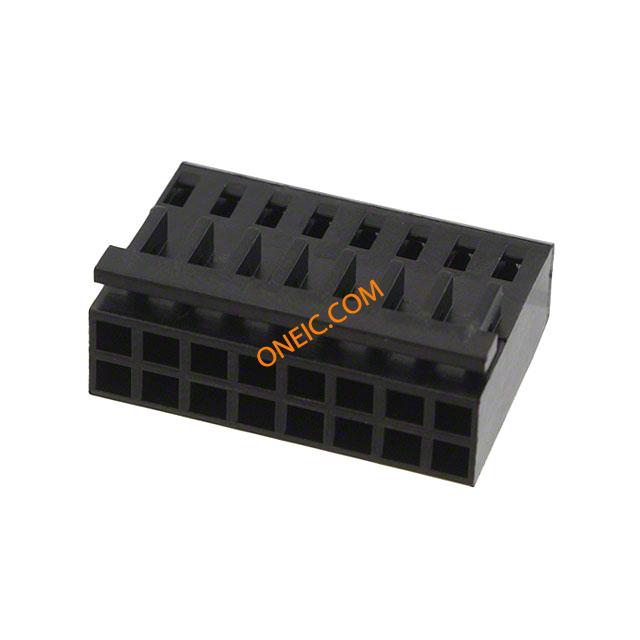

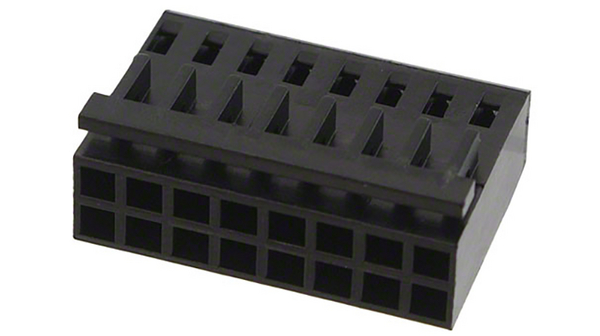

926476-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG RECPT 2X08P .100 AMPMODU Headers, Housings & Contacts CONN RCPT 16POS DL .100 CRIMP Connector,8way skt shell double row Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 2X8WAY 8WSKTSHELLD/R Crimp housing Pitch2.54 mm Poles 16 Double row / straight AMPMODU MOD IV, 926476-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 MOD 4 HSG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
机械参数
| 颜色 | Black | 深度 | 14.2mm |
| 间距 | 2.54 mm | 宽度 | 7.6mm |
| 长度 | 20.32mm | 重量 | 0.001 |
| 包装方式 | Bulk | 出线方向 | With |
| 排间距 | 2.54 mm | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :Gold |
| 安装样式 | Panel | 排数 | 2 |
| 封装形式 | Receptacle | 触头材料 | :Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Mod 1/2 Wire to Board Standard Pressure Contact | ||
