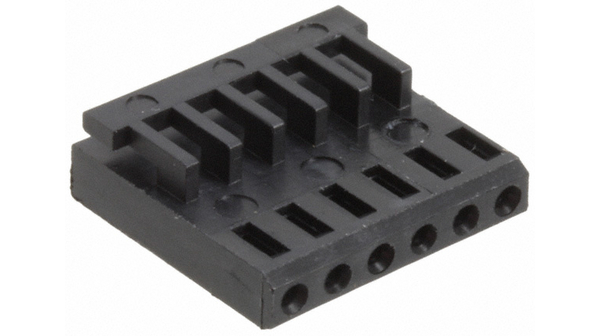

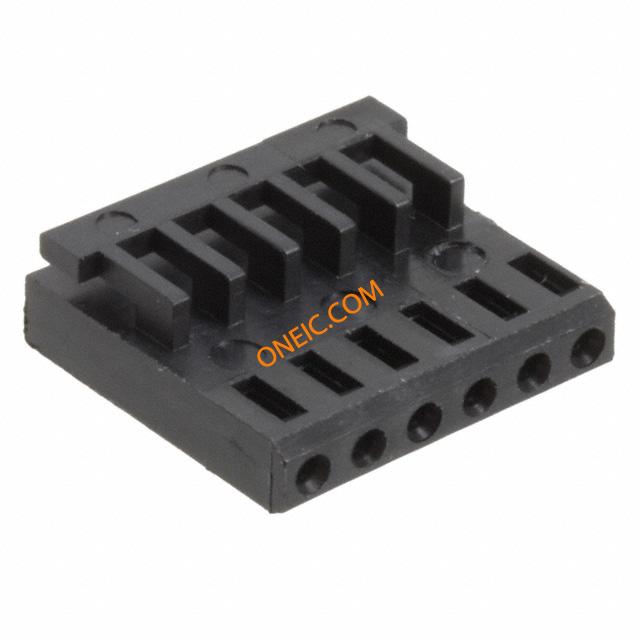

926475-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 CRIMP BLACK Connector,6way skt shell single row Headers & Wire Housings HSG RECPT 1X06P Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector,6waysktshellsinglerow Crimp housing Pitch2.54 mm Poles 6 Single row / straight AMPMODU MOD IV, 926475-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 MOD IV HSG SR 6 POS |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 | 极数 | 6 |
| 供电电压 | 250 VAC | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhm |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 长度 | 15.24 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 出线方向 | With | 方向 | 直 |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | Panel | 排数 | 1 |
| 封装形式 | Receptacle | 连接器样式 | Single row |
| 高度（英寸） | 14.2 | 壳体材料 | Polyester (PBT) |
| 包装数量 | 1000 | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | black | 配接方向 | Without |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器极性 | Female |
| 安装孔直径 | 不带 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 静电放电屏蔽 | 带有 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | IVSeries,ModSeries |
| 产品子类型 | Housing | 连接方式 | Wire-Board |
环境参数
| 工作温度 | -25...+105 °C | ||
文档与媒体
相关型号
926478-1
te connectivity / amp
