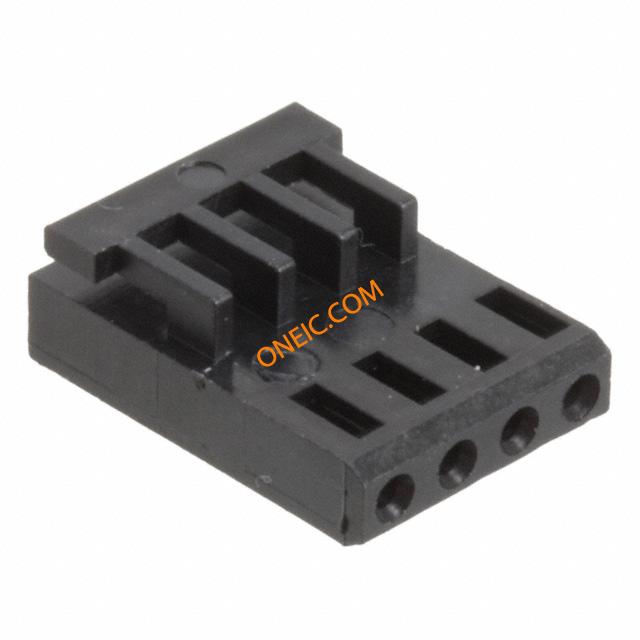

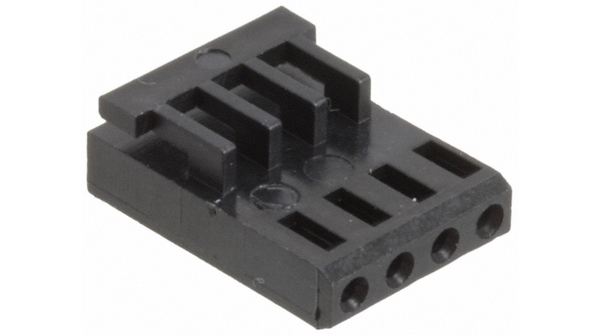

926475-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS .100 CRIMP BLACK Connector,4way skt shell single row Headers & Wire Housings HSG RECPT 1X04P Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 4WAY Connector,4waysktshellsinglerow Crimp housing Pitch2.54 mm Poles 4 Single row / straight AMPMODU MOD IV, 926475-4, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 MOD 4 HSG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.043 | 包装方式 | Bulk |
| 出线方向 | With | 排间距 | 2.54 mm |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | :Gold | 安装样式 | CableMount |
| 排数 | 1 | 封装形式 | Receptacle |
| 触头材料 | :Phosphor Bronze | 壳体材料 | Polyester (PBT) |
| 主要材料 | Connector | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | IVSeries,ModSeries |
| 产品子类型 | Housing | ||
