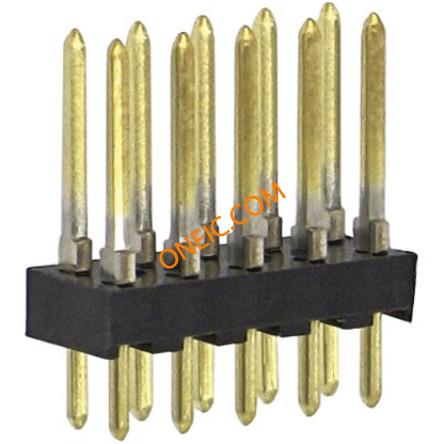

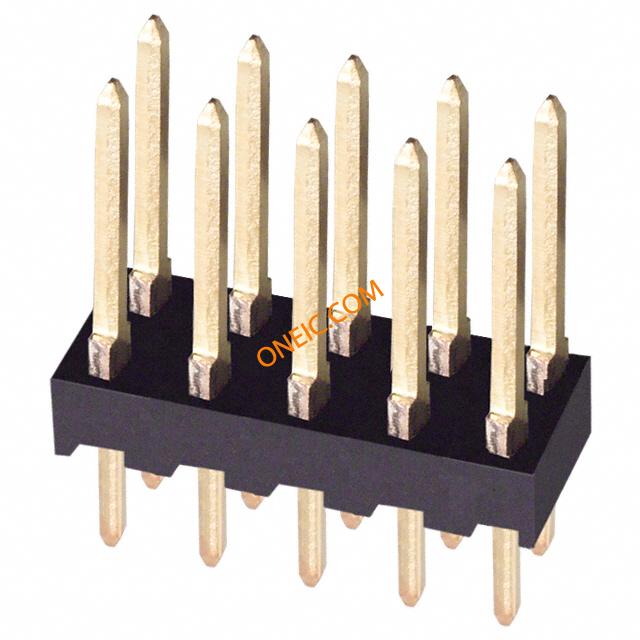

87227-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 15AU Header,Std,PCBMount,Dual,10,0.025in. Headers & Wire Housings UNSHRD VERT DUAL 10 Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Header;Standard;PCBMount;Dual;10;0.025in.;0.125in.;3A;5000Megohms 10 MODII HDR DRST UNSHRD .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 160 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant,UL94V-0HousingFlammabilityRating |
| 海关税号 | 85369010 | 认证机构 | CSA,UL |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 5.08 mm |
| 间距 | 2.54 mm | 高度 | 10.37 mm |
| 重量 | 0.00068 | 包装方式 | Bulk |
| 端口尺寸 | 0.025in. | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.318" | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 12.29 mm |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 接触件端接 | :Through Hole Vertical |
| 位数 | 10 | 触点镀层 | Gold(15μin.) |
| 柱体长度（配合） | 8.08 mm | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.18 mm | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU/MOD II | 产品特性 | Pinstrip |
| 制造商全称 | AMPMODU/MODIISeries | 产品子类型 | Headers |
| 矩阵（列×行） | 0.100x0.100in. | 加载位置数 | All |
环境参数
| 工作温度 | +105°C | ||
