点击放大查看

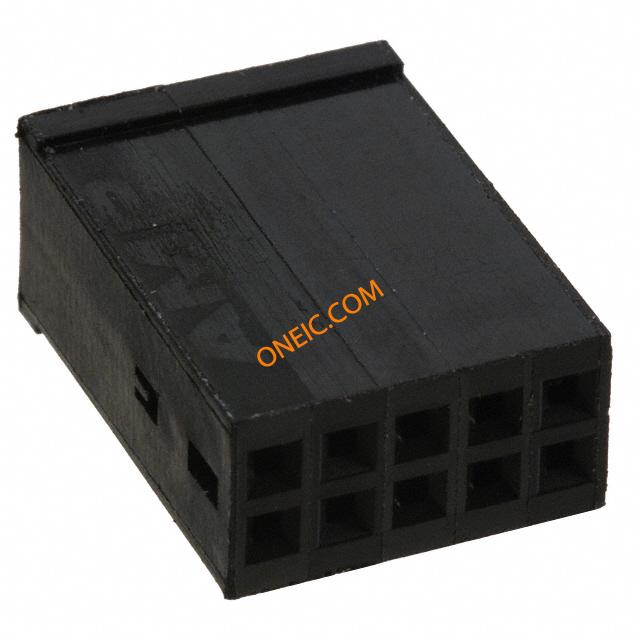

87133-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 10 POS DUAL ROW Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE LOCKINGCLIP,AMPMODU,RECEPTACLE,10POSITIONSINGLEROW 10 LOCKING CLIP HSG DR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	最大额定电流	3 A
最小供电电压	250VAC	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	17.78 mm
间距	2.54 mm	高度	7.62 mm
长度	13.11 mm [ .516 in ]	锁定类型	不带
包装方式	Bulk	壳体颜色	黑色
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	排数	2
插入件材料	磷青铜	壳体材料	Polyester
总长度	13.11 mm	包装数量	1
主要材料	InterconnectSystem	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	10
接触件端接	Crimp	位数	10
安装孔直径	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU Locking Clip
制造商全称	AMPMODU	产品子类型	Connectors
其他规格	否	应用细节	Board-to-Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C
