87224-8

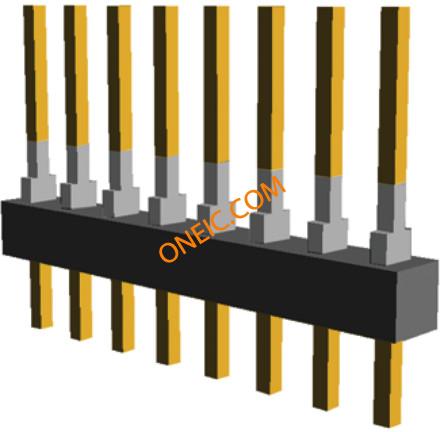

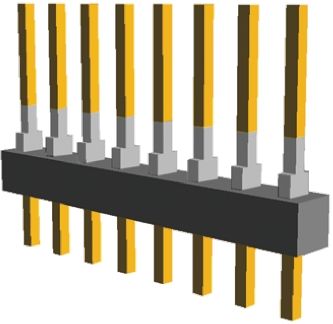

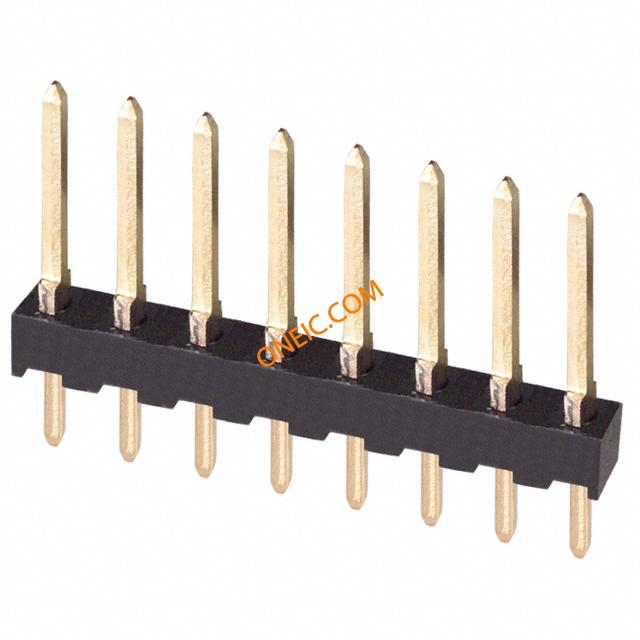

点击放大查看

87224-8

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings UNSHRD VERT SNGL 8 Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 8Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Header;Standard;PCBMount;Single;8;0.025in.;0.125in.;Square;0.1in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 08 MODII HDR SRST UNSHRD .100
分类
连接器解决方案板对板连接器板对板连接器

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量200

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0HousingFlammabilityRating
无铅定义Wave solder capable to 240°C认证机构CSA,UL
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

最大额定电流3A保护额定电压（VPR）750 Vrms

机械参数

颜色Black深度2.54 mm
间距0.100" (2.54mm)高度10.37 mm
底座类型不带锁定类型不带
包装方式Bulk端口尺寸0.025in.
壳体颜色黑色引脚样式正方形
稳定器不带方向直
排间距2.54 mm端接方式Solder
触头类型Male Pin引脚长度（针脚）0.318"
柱间距2.54 [.100]第一连接器No
第二连接器Without触点形状Square
外壳颜色Black安装类型Vertical
行程角度Straight连接器类型Standard
接触镀层Gold Over Nickel安装样式Through Hole
排数1插入件材料磷青铜
触头材料Copper Alloy壳体材料Thermoplastic
总长度19.91 mm安装特性Without
包装数量200面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
端接排数焊接插针孔直径0.1"
端接样式Through Hole第一连接器类型不带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数8端接表面处理不带
接触件端接GoldFlashOverNickel位数8
触点镀层Gold(15μin.)柱体长度（配合）8.08 mm
安装孔直径不带接触长度 - 配合8.08 [0.318]
表面贴装焊盘尺寸No端子柱长度3.18 [0.125]
接触镀层厚度15µin (0.38µm)静电放电屏蔽不带
第一连接器安装特征否

产品信息

类型Unshrouded Header连接器性别HDR
系列AMPMODU覆盖范围无覆盖
产品特性Pinstrip钥匙类型否
制造商全称AMP产品子类型Header
选择性装载No矩阵（列×行）0.1in.
加载位置数All

环境参数

密封等级不带温度No
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]
结工作温度否
