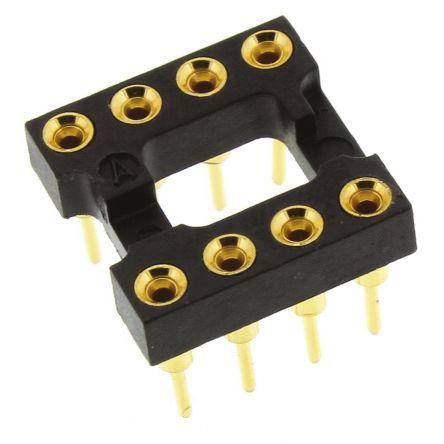

点击放大查看
808-AG10D
| 制造商 | TE Connectivity Ltd. |
| 描述 | IC & Component Sockets SOCKET 8-PIN CONN SOCKET 8POS DIP GOLD T/H IC Socket DIP8 2.54mm Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 8Row-to-Row Spacing = 7.62 mmThru HoleMount Style = Vertical DIP SOCKET, 8POS, THROUGH HOLE ICSOCKETDIP82.54MM TE Connectivity 垂直 2.54mm 节距 8 路, 通孔 车削引脚 开放式框架 DIL 插座, 3A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 38 Days |
| 子类别 | Connector Socket | 零件号别名 | 1437537-5 |
| 产品类别 | IC & Component Sockets | 标准包装数量 | 60 |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 深度 | 0.105in | 间距 | 0.100" (2.54mm) |
| 宽度 | 0.4in | 长度 | 0.4in |
| 重量 | 0.002 | 包装方式 | Tube |
| 排间距 | 7.62mm | 端接方式 | Solder |
| 触头类型 | Turned | 柱间距 | :7.62mm |
| 安装类型 | Through Hole | 连接器类型 | :DIP Socket |
| 接触镀层 | Gold | 安装样式 | PCB |
| 触头材料 | Beryllium Copper | 壳体材料 | PET |
| 尺寸/外形 | 0.4 x 0.4 x 0.105in | 触点数 | 8 |
| 接触件端接 | :Through Hole Vertical | 接触镀层厚度 | 25µin (0.63µm) |
| 位置或引脚数（网格） | 8 (2 x 4) | ||
产品信息
| 类型 | DIP, 0.3" (7.62mm) Row Spacing | 系列 | :800 |
| 产品特性 | Open Frame | 行业别名 | 1437537-5, 808-AG10D |
环境参数
| 工作温度 | +105°C | ||
