点击放大查看

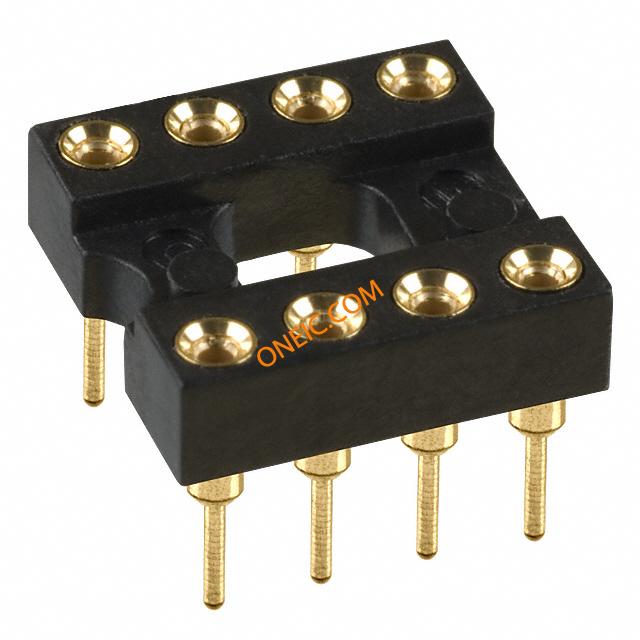

110-13-308-41-001000
| 制造商 | Mill-Max Mfg. Corp. |
| 描述 | IC SOCKET 8 PIN .300 GOLD Socket; DIP;Open;4-Finger;8 Pos.;Solder;0.3In.;Ber. Copper;30muIn. Gold;0.125In. IC & Component Sockets 8P GLD PIN GLD CONT Conn DIP Socket SKT 8 POS 2.54mm Solder ST Thru-Hole Tube DIP SOCKET, 8POS, THROUGH HOLE Socket,DIP;Open;4-Finger;8Pos.;Solder;0.3In.;Ber.Copper;30muIn.Gold;0.125In. |
| 分类 |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
机械参数
| 深度 | 10.16 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 mm | 重量 | 0.002 |
| 底座类型 | Open Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 柱间距 | :7.62mm |
| 安装类型 | Through Hole | 连接器类型 | :DIP Socket |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 10.16 mm | 端接样式 | Solder Tail |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 绝缘材料 - 类型 | Polychlorinated Terp | 位数 | Not Required |
| 接触镀层厚度 | 30µin (0.76µm) | 位置或引脚数（网格） | 8 (2 x 4) |
产品信息
| 类型 | DIP, 0.3" (7.62mm) Row Spacing | 连接器性别 | SKT |
| 系列 | :110 | 已删除 | Compliant |
| 产品特性 | Open Frame | 适用产品/相关产品 | 110-91-308-41-001000110-93-308-41-001000110-99-308-41-001000 |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
