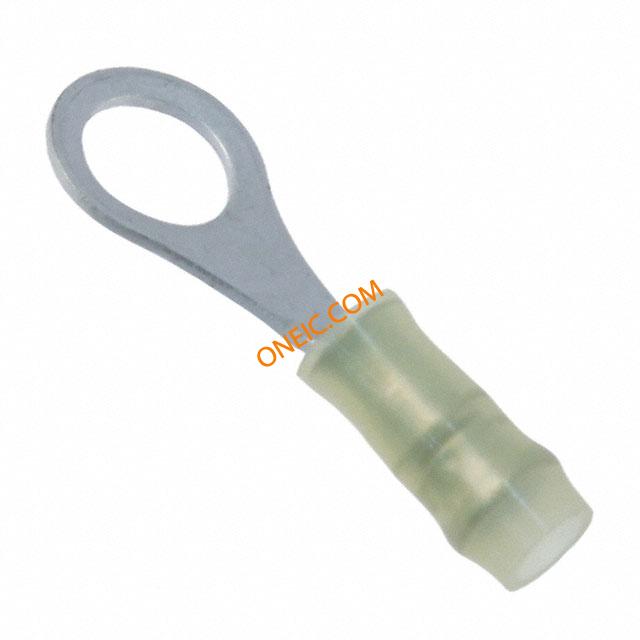

8-323916-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 22-26AWG 18.8mm 6.35mm Tin Loose Piece Terminals NYL-RING 26-22 #8 M4+ Ring and Spade Tongue Terminals CONN RING 22-26AWG #8 YEL PIDG Ring Tongue Terminal 22-26AWG 18.8mm 6.35mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, YELLOW TERMINAL,PIDG R 26-22 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 83239161 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.036 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.018" (0.46mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4.16 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 0.740" (18.80mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 绝缘直径 | 2.08 [.082] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.250" (6.35mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 0.51 [0.020] | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 202 â 810 | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
