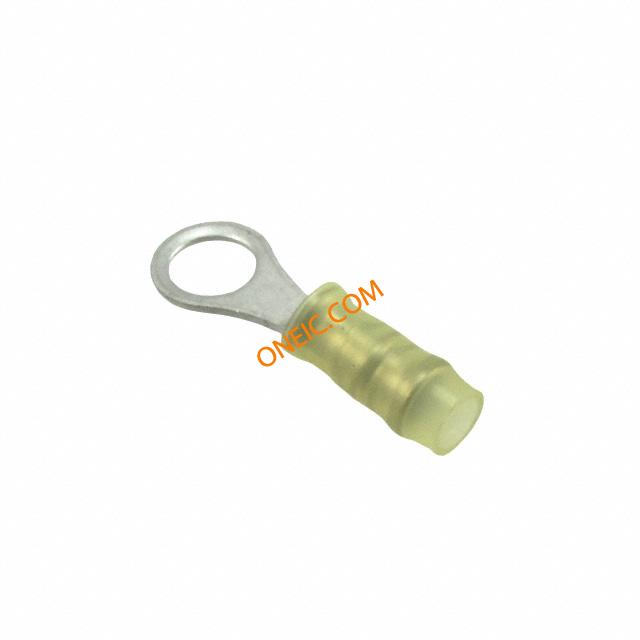

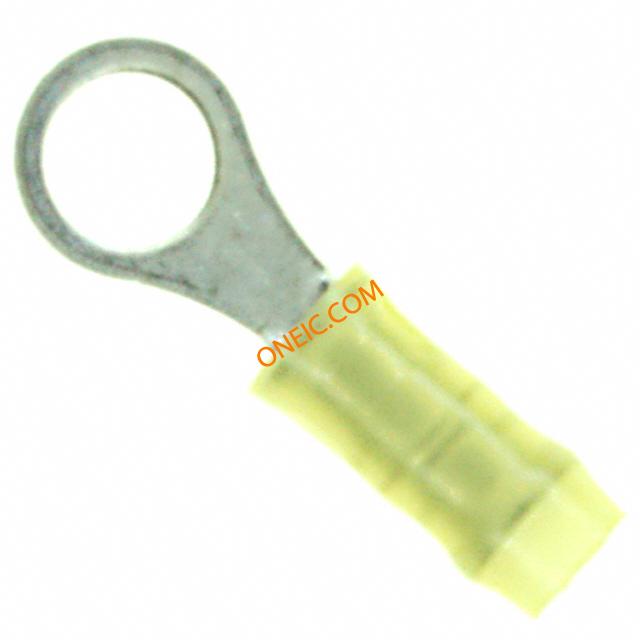

8-323915-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 22-26AWG 16.41mm 5.16mm Tin Box Terminals NYL-RING 26-22 YEL #6 Ring and Spade Tongue Terminals CONN RING 22-26 AWG #6 PIDG Ring Tongue Terminal 22-26AWG 16.41mm 5.16mm Tin Box Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, YELLOW SEE512-4459323915 TERMINAL,PIDG R 26-22 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 电压范围 | 300VAC | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.032 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.018" (0.46mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 6 | 导线线规 | 22-26 AWG |
| 本体表面处理 | PIDG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.203" | 触头材料 | Copper |
| 柄部直径 | 0.138in. | 绝缘颜色 | :Yellow |
| 总长度 | 0.646" (16.41mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 材料厚度 | 0.02in. |
| 接触件尾部长度 | 0.51 [0.020] | 绝缘直径 | 2.08 [.082] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.203" (5.16mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 202 â 810 | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
