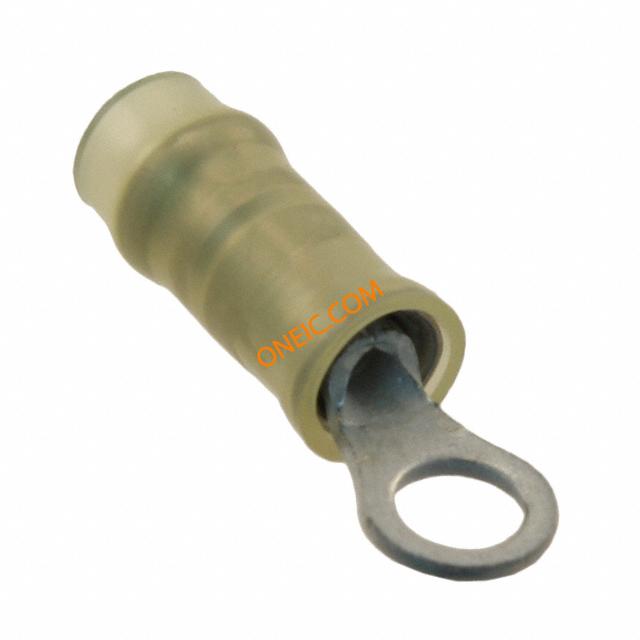

8-323912-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 22-26AWG 13.33mm 3.55mm Tin Box Terminals TERM PIDG R 26-22 2 TERM PIDG R 26-22 2 Ring and Spade Tongue Terminals CONN RING TONGUE 26-22AWG PIDG Ring Tongue Terminal 22-26AWG 13.33mm 3.55mm Tin Box Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDG R 26-22 2 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | .222 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.018" (0.46mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 2, M2 | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 2.14 mm |
| 端子类型 | Circular | 电缆材料 | Stranded |
| 接触镀层 | Tin | 端子样式 | Straight |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 0.525" (13.34mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 端接样式 | 环形端子 |
| 连接器颜色 | Yellow | 接触件尾部长度 | 0.51 [0.020] |
| 绝缘直径 | 2.08 [.082] Max. | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.140" (3.56mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | .5 mm [ .0197 in ] |
| 螺纹/螺钉/孔尺寸 | 2.36 mm [ .093 in ] | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 202 â 810 |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | 外径-未扩张 | 2.08 mm [ .082 in ] |
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
