点击放大查看

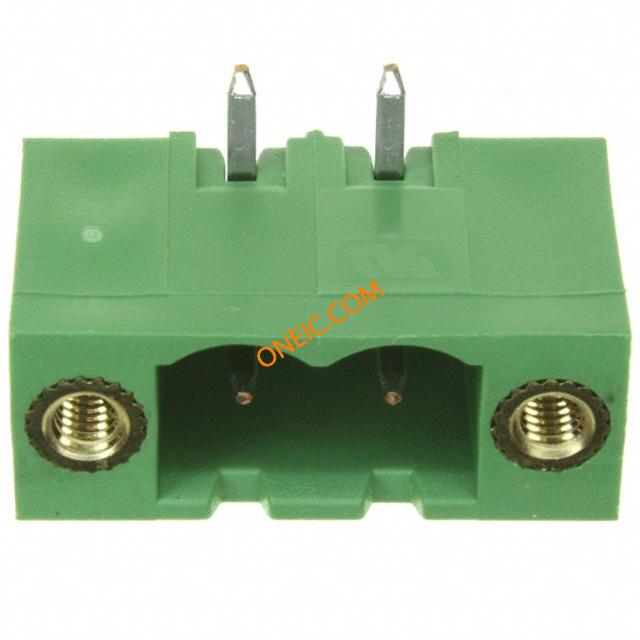

796866-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5.08MM Pluggable Terminal Blocks HDR 2 POS R/A 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2 POS TERMI-BLOK HDR RT ANGLE |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 端部样式 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 300 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Flange | 层数 | 1 |
| 互连系统 | 带有 | 每层位数 | 2 |
| 并排堆叠 | 否 | ||
文档与媒体
相关型号
796863-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw ST Panel Mount 15A/Contact Pluggable Terminal Blocks 2 POS TERMI-BLOK PLUG VERTICAL Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM 2 POS TERMI-BLOK PLUG VERTICAL 2 POS TERMI-BLOK PLUG VERTICAL Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1-1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRA Pluggable Terminal Blocks Crimp Style housing 5.08 Gray 2 posn TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount
1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRE Pluggable Terminal Blocks Crimp Style housing 5.08 Gre Eurostyle Terminal Blocks TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Product Highlights:ConnectorType of Connector = PlugShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUGGABLE, 2POS Crimp Style housing, 5.08, Green, 2 posn

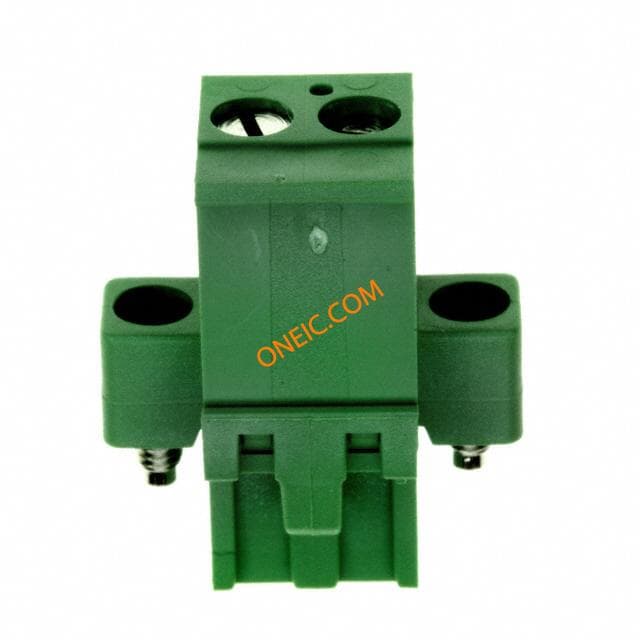

796861-2
