794550-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS Crimp ST 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG 2POS PANEL MOUNT Pin & Socket Connectors 02P DUAC PLUG HSG 94V-2 PAN MT Conn Housing PL 2 POS Crimp ST Product Highlights:HousingAMP-DUACPlugNumber of Positions = 2UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 02P DUAC PLUG HSG 94V-2 PAN MT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 600 |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | E28476 |
| 标准编号 | CSA | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 23.9 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 11.7 mm |
| 长度 | 5.41 mm [ .213 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Locking Ramp |
| 排数 | 2 | 封装形式 | Plug |
| 高度（英寸） | 11.7 | 插入力 | 4 |
| 总宽度 | .94 | 壳体材料 | Nylon |
| 包装数量 | 600 | 端接样式 | 插针 |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Plug Housings |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 105C |
文档与媒体
相关型号
794657-2
te connectivity / amp
Conn Housing RCP 2 POS Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action HOUSING RCPT 2POS POS LOCK Pin & Socket Connectors 02P RCPT HSG 94V-0 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action 4.2mm (.165") Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 2UL 94V-0Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 02P RCPT HSG 94V-0

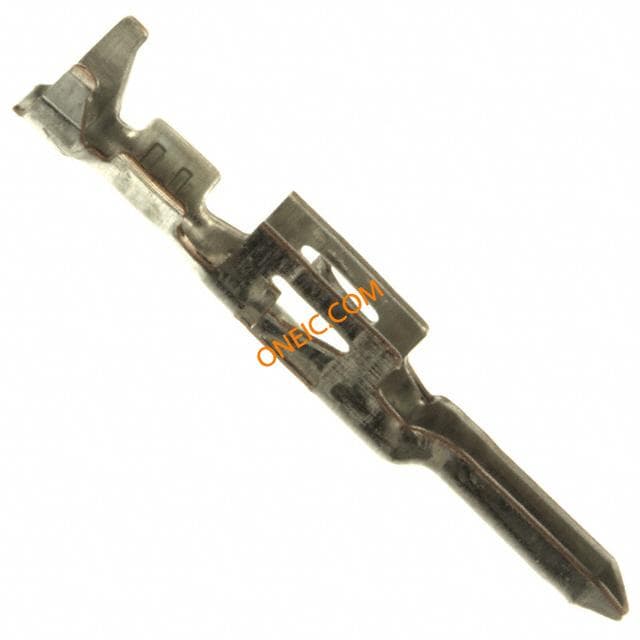

794578-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26AWG TIN CRIMP TERM Pin & Socket Connectors AMP DUAC PIN AMP DUAC PIN 26-22 AWG TIN
794579-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals DUAC PIN 26-22 TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26 AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.12-0.40² [26-22] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 26-22 AWG Male Pin Contact AMP DUAC PIN 26-22 AWG TIN LP
794577-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 18-22AWG TIN CRIMP TERM Headers & Wire Housings AMP DUAC PIN 22-18 A Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.30-0.90² [22-18] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power AMP DUAC PIN 22-18 AWG TIN LP

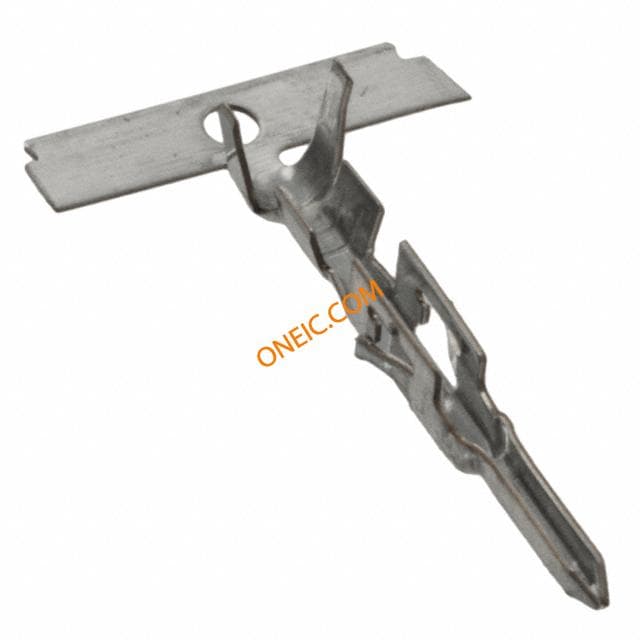

794576-1
