点击放大查看

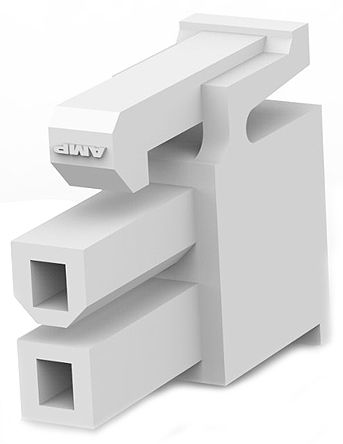

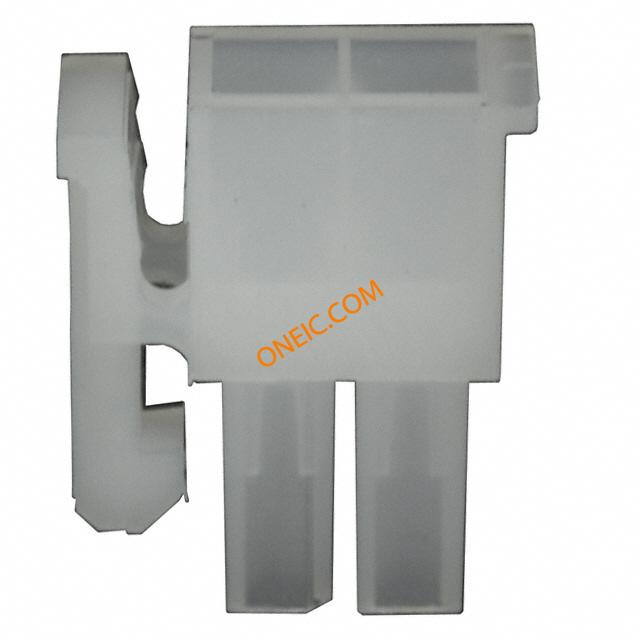

106527-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 2POS W/POSTIVE LOCK Headers & Wire Housings 02P DUAC REC HSG Conn Housing RCP 2 POS Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 2UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG AND SOCKET CONNECTOR HOUSING TE Connectivity AMP-DUAC 系列 4.2mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P DUAC REC HSG |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 开关功能 | Latched | ||
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0.0009 | 包装方式 | Bulk |
| 导线线规 | 18-26 AWG | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 基体材料 | :Nylon |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP-DUAC |
