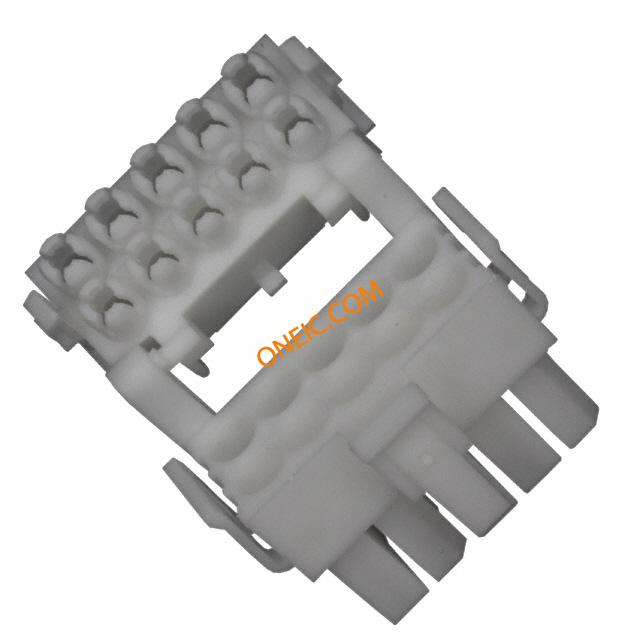

794196-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 10 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE 2 Pin & Socket Connectors 10P MINI UMNL2 PLUG Conn Housing PL 10 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 10WAY MINIUMNL2HOUSINGS,10PMINIUMNL2PLUGHSGUL94V0 Crimp housing Pitch4.14 mm Poles 2 x 5 MATE-N-LOK II Mini Universal, 794196-1, TE Connectivity 10P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 300 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | :1500V | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最大触点电流 | :10.5A | 绝缘电阻 | :100Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75 mm |
| 间距 | 4.14 mm | 高度 | 17.25 mm |
| 重量 | 0.0327 | 锁定类型 | Latch |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 总长度 | 26.97 mm | 包装数量 | One Piece Housing |
| 主要材料 | InterconnectSystem | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | 中心触点材料 | 4.14 x 4.14 [.163 x .163] |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok II |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 电路数 | 10 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | :65°C | ||
文档与媒体
相关型号
770743-1
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS STR DUAL .163 TIN Pin & Socket Connectors .163 10CKT 200 Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL HDR ASSY D/R VRT
1-770743-1
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS STR DL .163 AU TE Connectivity Mini-Universal MATE-N-LOK Series 4.14mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYVRTLF Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL HDR ASSY VRT LF
1-770858-1
te connectivity / amp
Conn Power HDR 10 POS Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT .163 GOLD Headers & Wire Housings HEADER 10 POS GOLD DUAL ROW Conn Power HDR 10 POS Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL HDR ASSY AU LF
1-770971-1
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 AU Headers & Wire Housings HEADER 10 POS R/A GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYLF Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY LF
1-770971-0
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 10 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS R/A TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING R/A, 10WAY MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYSN Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY SN
1-794222-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG MINI-U M-N-L2 Pin & Socket Connectors PIN 16-20 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2PinPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONN PIN 16-20AWG MINI UMNL2 PIN 20-16AWG AU LF
1-770743-0
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS STR DL .163 TIN Headers & Wire Housings HEADER 10 POS TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 10POS, 4.14MM MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYD/RVRT Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-0, TE Connectivity 10P MINI UMNL HDR ASSY D/R VRT
794229-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG GOLD CRIMP Power to the Board SOCKET CONTACT 22-18 2000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18 AWG AU LP
1-770858-0
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT .163 TIN Headers & Wire Housings HEADER 10 POS TIN DUAL ROW Conn Power PIN 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYSNDBLLF 10P MINI UMNL HDR ASSY SNDBL L
770743-2
te connectivity / amp
Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS STR DUAL .163 AU Power to the Board 10P PIN HDR 2ROW 200 10P MINI UMNL HDR ASSY D/R VRT
1-794221-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 18-22AWG MINI-U M-N-L2 Pin & Socket Connectors MUMNL2 SKT 22-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = StripWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL2 SOK 22-18AWG AU LF
794197-1
te connectivity / amp

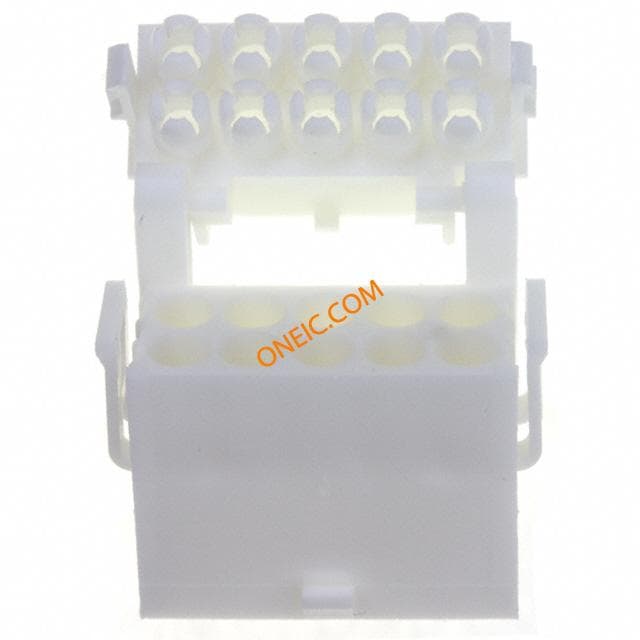

Conn Housing RCP 10 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 10POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 10 POS Conn Housing RCP 10 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL2 CAP HSG UL94V0
770971-1
te connectivity / amp
Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 TIN Power to the Board RA DUAL PIN HDR 10P 800 Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINI UMNL R/A HDR ASSY SN
1-794217-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG MINI U MNL Pin & Socket Connectors MINI UMNL2 SOK 30-26 Contact SKT Crimp ST Cable Mount Strip Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-794219-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SCKT 22-26AWG MINI-U M-N-L2 Pin & Socket Connectors SCKT 26-30 AWG 1-794219-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UNML2 SOK 26-22 AWG AU LF
1-794231-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG GOLD CRIMP Pin & Socket Connectors SOCKET CON 20-16AWG Gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketPackaging Method = Loose PieceWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINIUMNL2LP,MINIUMNL2SCKT20-16AWGLPA MINI UMNL2 SCKT 20-16AWG LP A
794250-1
TE Connectivity / AMP
Pin & Socket Connectors 10P MINI UMNL2 CAP HSG UL94V2 .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 10POS DL FREE HANG
1-794328-0
TE Connectivity / AMP
Pin & Socket Connectors 10P MINI UMNL HDR ASSY BLMT LF .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS VERT MINI-UMNL
770971-2
te connectivity / amp

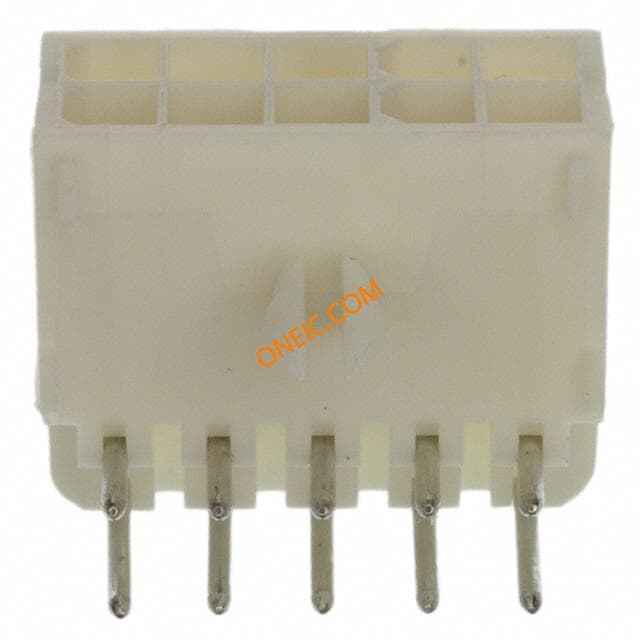

Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 AU Pin & Socket Connectors 10P HEADER 800 Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10Terminal 1Port Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
