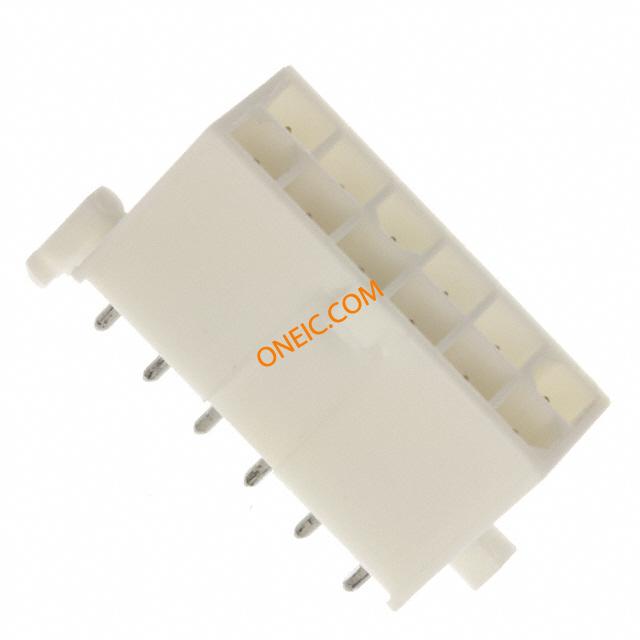

794066-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 12POS STR DUAL .163 AU Headers & Wire Housings HEADER 12 POS GOLD DUEL ROW Conn Power HDR 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA) | 端接样式 | Through Hole |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Lock | 加载位置数 | All |
文档与媒体
相关型号

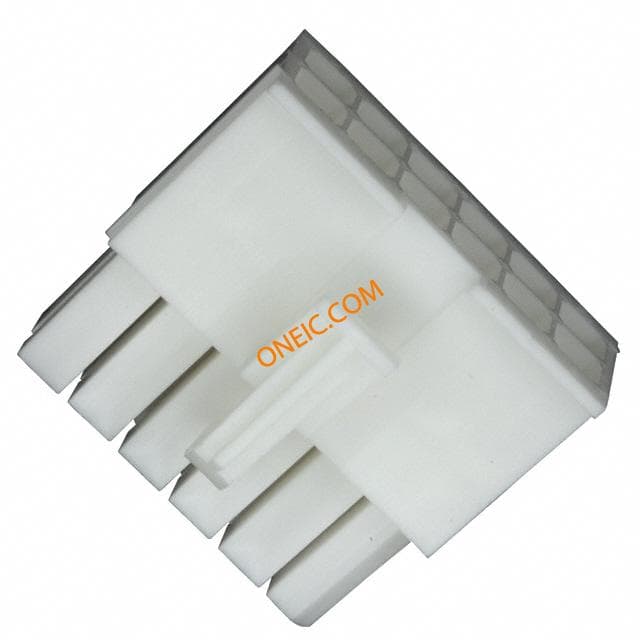

770581-1
te connectivity / amp
Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors 12P MINI UMNL PLUG Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;12;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 6 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770581-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 12P MINI UMNL PLUG HSG

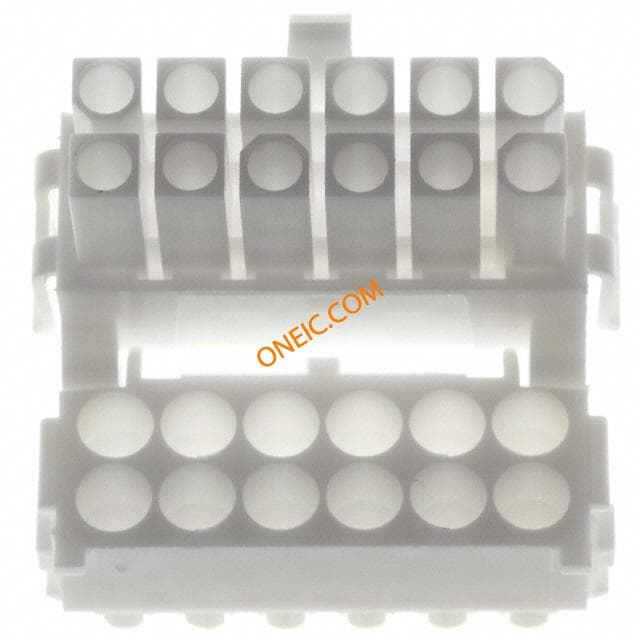

794198-1
