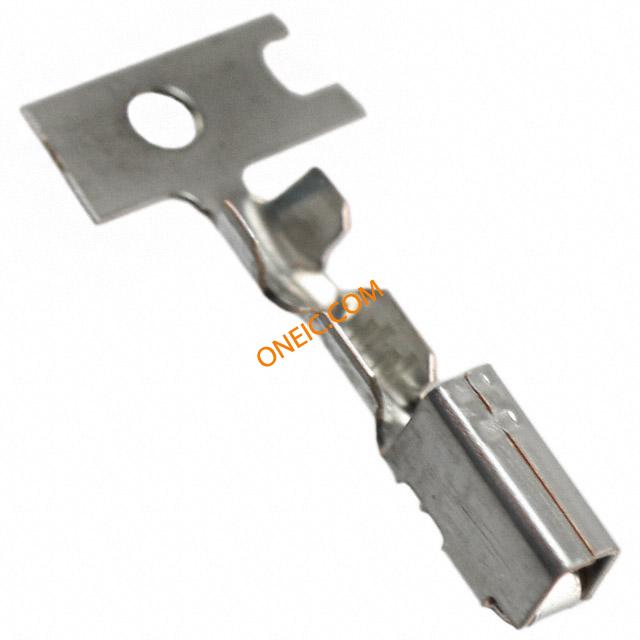

770601-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100 |
| 分类 |
商业参数
| 其他名称 | A100820CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 250 V | 接触电阻 | 6mΩ |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.67 mm | 间距 | Not Required mm |
| 高度 | 3.77 mm | 重量 | 0.02 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 0.12-0.4² [26-22] |
| 端接方式 | Crimp | 触点尺寸 | :22 |
| 触头类型 | Signal | 触点形状 | Box |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 行程角度 | Straight |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 11.18 mm |
| 包装数量 | Strip | 主要材料 | QuickDisconnect |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 1.65 [0.065] |
| 线规或范围 - AWG | :26AWG | ||
产品信息
| SPG | 1 | 备注 | Pre-tin may or may not have nickel underplate. |
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | CST-100 | CAD图纸 | 3D CAD Model |
| 产品子类型 | CST-100 Contacts | 适配器系列 | CST-100 |
| 单元数量 | 1 | 适用产品/相关产品 | CST-100 Housings |
环境参数
| 工作温度 | +105°C | ||
