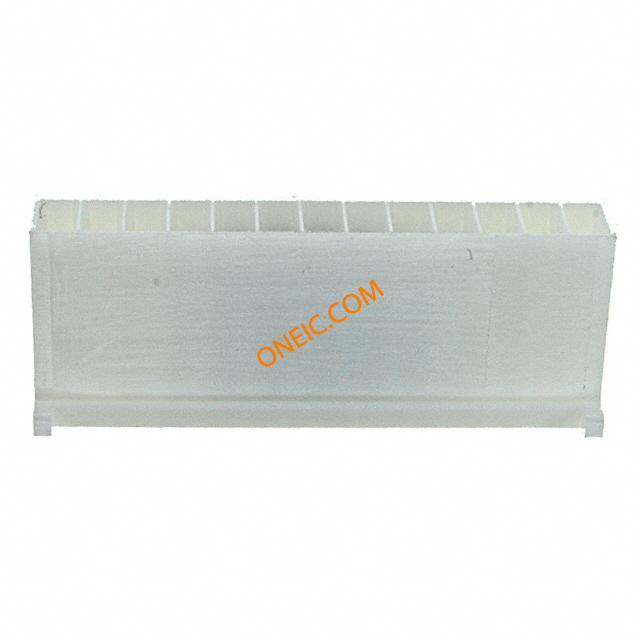

1-770602-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13 POS CST-100 Headers & Wire Housings HSG REC 1X13C STD Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 13Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13 Position 2.5 mm Pitch Natural Nylon Rectangular Housing |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 5/Contact A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 12.95 mm |
| 间距 | 2.54 mm | 高度 | 6.6 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 壳体材料 | Nylon | 总长度 | 33.53 mm |
| 安装特性 | Without | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 13 |
| 接触件端接 | Crimp | 位数 | 13 |
| 典型触点布局 | 2.54 [0.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 制造商全称 | AMP | 产品子类型 | CST-100 Housings |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55C to 105C | ||
