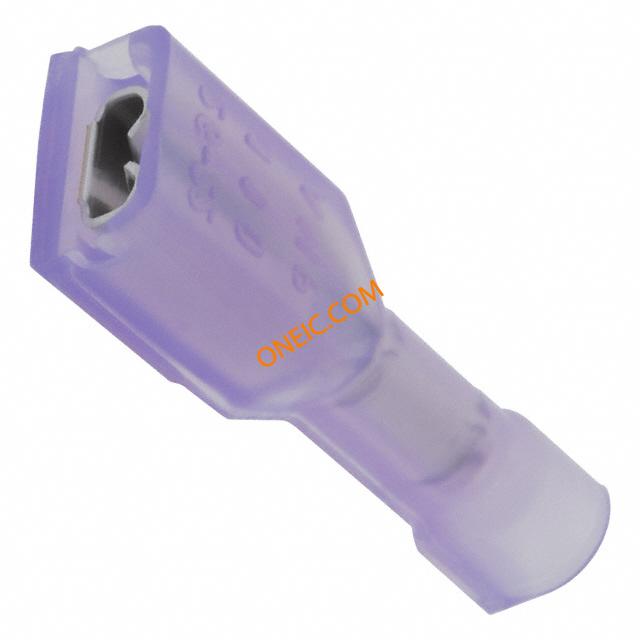

7-520366-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 22-26AWG RCP 18.66mm 6.98mm Tin Loose Piece Terminals ULTRA-FAST RECEPT Ultra-Fast Receptacles & Tabs CONN RECEPT FASTON 22-26AWG .110 Quick Disconnect Terminal 22-26AWG RCP 18.66mm 6.98mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 2.79 x 0.51 mm, 3.18 x 0.51 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL FEMALE DISCONNECT 3.18MM VIOLET ULTRA-FASTLP,110ULTRAFASTREC26-22TPBR Faston Ultra-Fast (110) AWG 26-32 Fully Insulated Straight Receptacle ULTRAFAST 110 ASSY REC 26-22 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Violet | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 2.79 x 0.51 [.110 x .020], 3.18 x 0.51 [.125 x .020] |
| 绝缘类型 | Insulated | 导线线规 | 26-22 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.11 in x 0.02 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Brass |
| 绝缘颜色 | :Violet | 总长度 | 0.735" (18.67mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 绝缘直径 | 2.54 [.100] Max. |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | ||
产品信息
| 连接器性别 | Female | 系列 | 110 |
| 应用 | Standard | 制造商全称 | ULTRA-FAST |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast |
