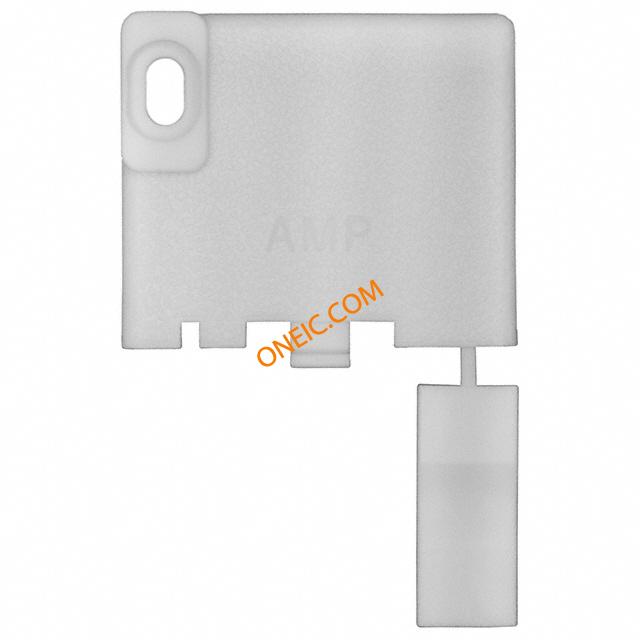

点击放大查看
643030-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 5 POS Housing Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 5POS Strain relief,Matenlok,1 row,5Way,Whte Pin & Socket Connectors STRN RLF 5 CKT IN-LN Connector Accessories 5 POS Housing Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 5Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 5WAY Strainrelief,Matenlok,1row,5Way,Whte StrainRelief;5Pos;UnivMATE-N-LOK;White;InsertSupplied Strain relief shell, 643030-1, TE Connectivity TE Connectivity 5路 应力释放支架, 使用于 MATE-N-LOK 系列 05P UMNL STR/REL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 连接器类型 - 电压输入 | Universal MATE-N-LOK II | ||
机械参数
| 颜色 | White | 深度 | 33.02 mm |
| 宽度 | :39mm | 长度 | :33mm |
| 重量 | 0.001 | 材料（通用） | :Nylon |
| 线径 | 1.02 â 4.83 [0.040 â 0.190] | 供货尺寸 | Yes |
| 壳体材料 | Nylon | 连接器颜色 | :White |
| 触点数 | 5 | 位数 | 5 |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 典型触点布局 | In-Line |
| 每排/每行位置数 | 5 | 外径-未扩张 | :4.83mm |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 样式 | :#6 x 10 mm Lg Type B Pan head sheet metal screw | 系列 | Universal Mate-N-Lok |
| CAD图纸 | 3D CAD Model | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 5 |
| 射频系列/标准 | 643030 | 适用产品/相关产品 | Universal MATE-N-LOK II Series |
