770320-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 5 POS 6.35mm Crimp ST Panel Mount Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG REAR 5POS UNIV-MNL II Pin & Socket Connectors HSG REAR 94VO 05P UMNLII PLUG Conn Housing PL 5 POS 6.35mm Crimp ST Panel Mount Rear Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 05P UMNLII PLUG HSG REAR 94VO |
| 分类 |
商业参数
| 其他名称 | A25745 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Plug, Rear Section | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 封装形式 | Plug | 高度（英寸） | .845 |
| 总宽度 | .3 | 壳体材料 | Nylon |
| 总长度 | 1.3 | 包装数量 | 1 |
| 端接样式 | 插座 | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK 连接器 |
| 典型触点布局 | 直插式 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Plug Housings |
| 装配配置 | Kit | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 120 °C [ -67 – 248 °F ] |
文档与媒体
相关型号
770255-2
te connectivity / amp

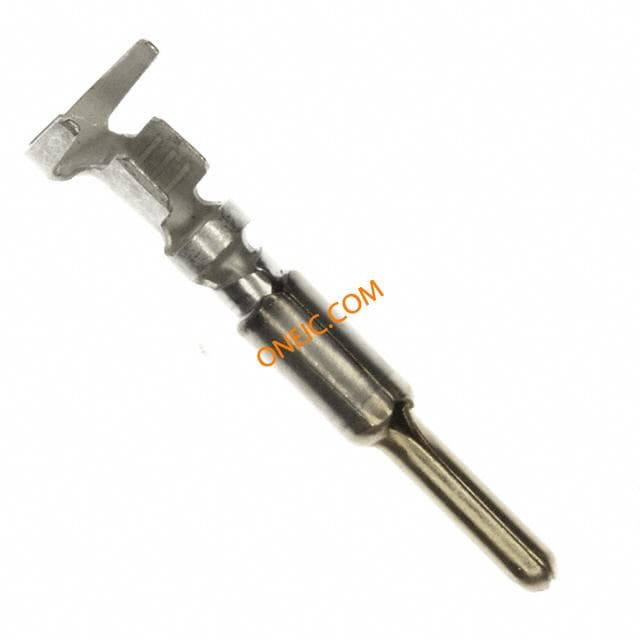

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG GROUND PIN LP DUPL BR 770255-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK II Product LineTerminate To WireCrimp Termination MethodContact Type = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
193842-1
te connectivity / amp

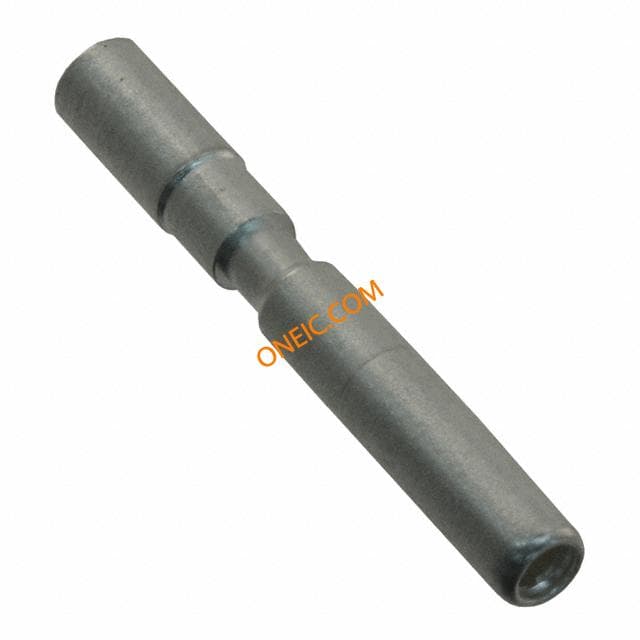

Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONTACT CRIMP SOCKET AWG 12-14 Contact socket Universal Mate-n-Lok Power to the Board SOCK TERM 14-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketHigh CurrentSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, CRIMP, SOCKET, 14-12AWG CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,2MM,12-14AWG,HIGHCURRENT TE Connectivity Elcon 系列 压接接线端子, 镀金镀镍触点 SKT ASSY., 2MM, 12-14 AWG
1-770005-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Pin & Socket Connectors 20-14 AWG PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
770008-4
te connectivity / amp

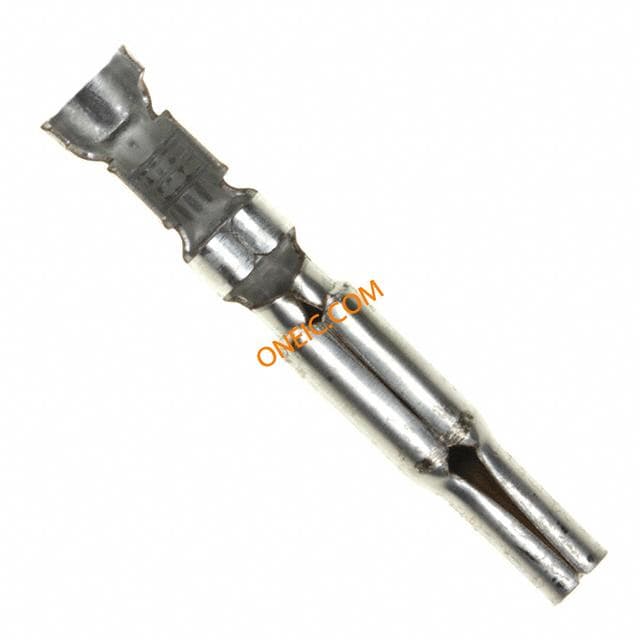

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board SOCKET CONTACT 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ
770008-3
te connectivity / amp

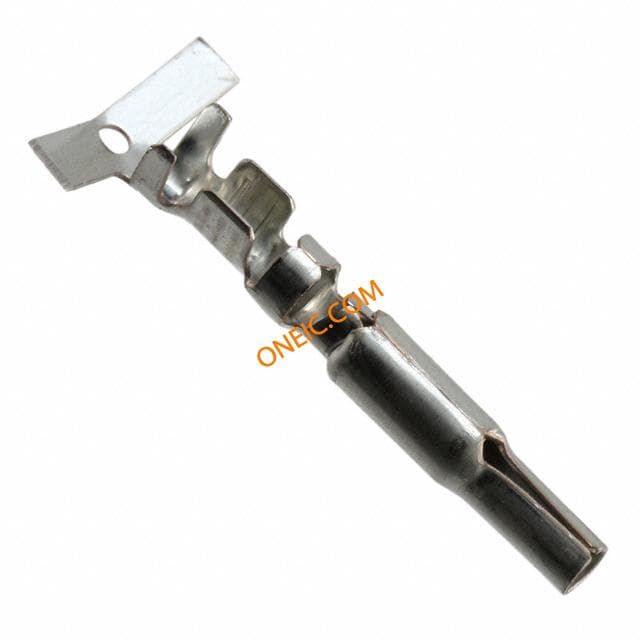

Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP Contact female 20-14AWG UMNL II Power to the Board SOCKET 20-16 AWG Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP CONTACT,SOCKET,UNIVERSALMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡镀镍触点 UMNL II SOK PTPPHBZ
1-770007-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Power to the Board PIN 20-14 BR/AU 12000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact,SplitPin,UniversalMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL II PIN AUSN/NI/BR
770249-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG TIN CRIMP MATE-N-LOK II Socket Contact tin24-18AWG Power to the Board SOCKET 20-14 TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20-14AWG, CRIMP MATE-N-LOKII,Contacts-Pre-TinnedBrass,Socket,for20-14AWG UMNL II SOK PTPPHBZ LP 12-14
770005-1
te connectivity / amp

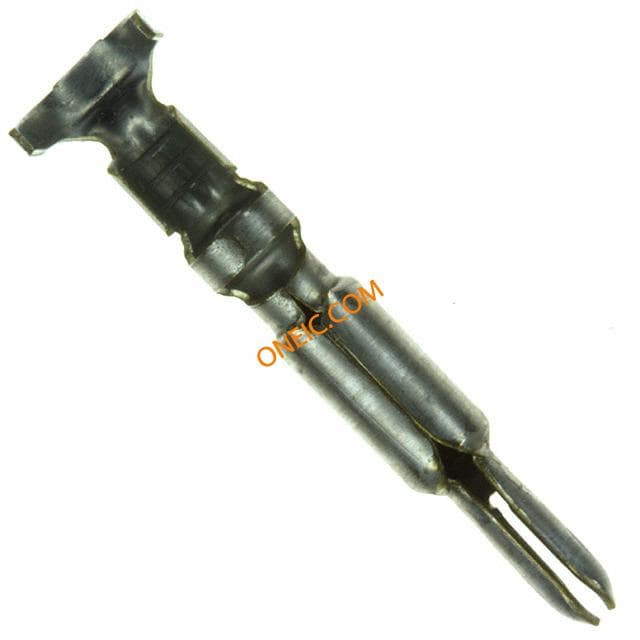

Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG TIN CRIMP Mate-n-Lok II,Contact,pin,0.50-2.00mm² Pin & Socket Connectors SPLIT PIN CONTACT REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT,SPLITPIN,UNIVERSALMATE-N-LOKII,20-14AWG TE Connectivity Universal MATE-N-LOK II 系列 公 压接接线端子, 压接, 镀锡镀镍触点 UMNL II PIN PTPBR
770512-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN SPLIT 30-26AWG U-MNL II Pin & Socket Connectors UMNL PIN AU/PHBZ LP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
770253-4
te connectivity / amp

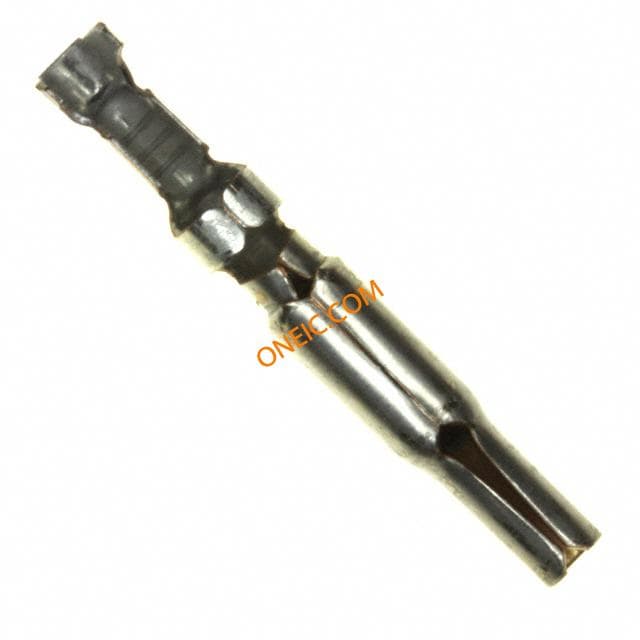

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET 24-18 GOLD Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Contact;UniversalMATE-N-LOKII;19A;600VAC;0.25in.;0.086in.;24-18AWG UMNL II SOK SNAUNIPHBZ LP24-18
1-770246-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 10-12AWG GOLD CRIMP Power to the Board PIN 12-10 PHBR/AU 1-770246-0 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = Split PinWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, PIN, 12-10AWG, CRIMP UMNL II PIN AUNIPHBZ LP 12-10
1-770247-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 10-12AWG GOLD CRIMP Power to the Board SKT 12-10 PHBR/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVERSALMATE-N-LOKUMNLIISOKSN/AUNI/PHBZ UMNL II SOK SN/AUNI/PHBZ LP
770005-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP
770010-4
te connectivity / amp

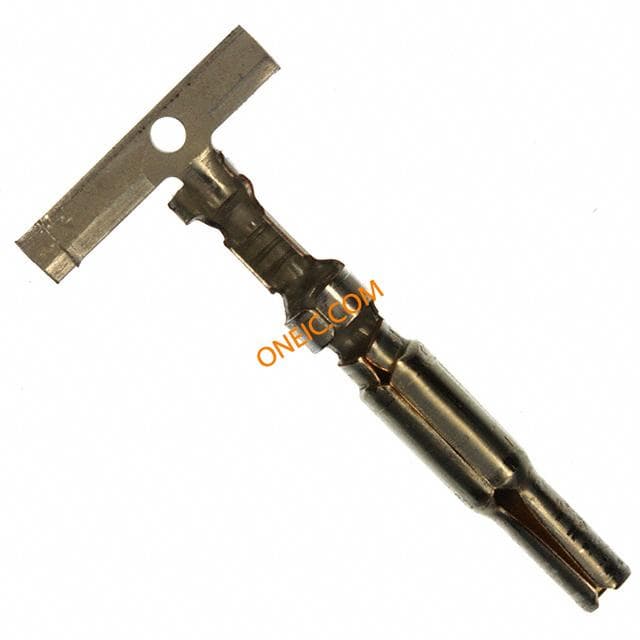

Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board UMNL II SOK SN/AUNI 5000 770010-4 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOK IINot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL II SOK SN/AUNI/PHBZ
