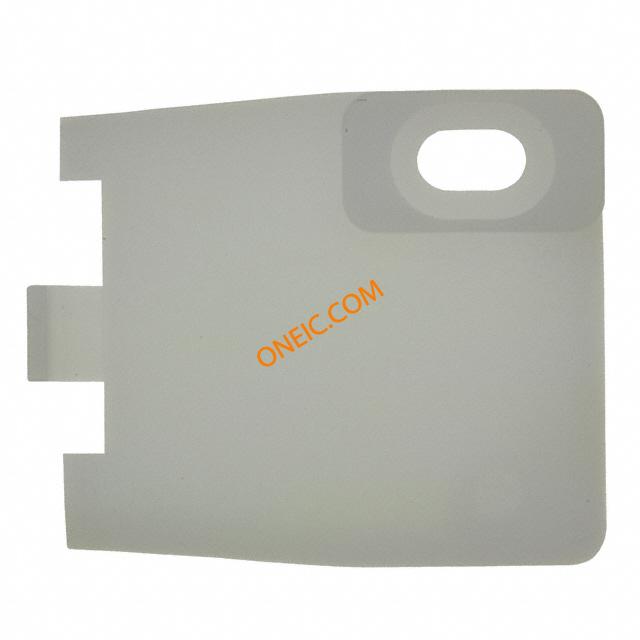

641763-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 03P UMNL STR/REL V2 NATL Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 3POS Strain relief,Matenlok,1 row,3Way,Natl Power to the Board 3P STRAIN RELIEF Connector Accessories Strain Relief 3 POS Nylon Natural Connector Accessories Strain Relief 3 POS Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalNumber of Circuits = 3Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, MATE-N-LOK, 3WAY Connector;SoftShell;3;UniversalMATE-N-LOK;Nylon;In-Line;AMPBrand TE Connectivity 3路 应力释放支架, 使用于 MATE-N-LOK 系列 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 输出数量 | 3 |
| 连接器类型 - 电压输入 | Universal MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 高度 | 8.38 mm |
| 重量 | 0.004 | 线径 | 5.08 â 8.89 [0.200 â 0.350] |
| 连接器类型 | SoftShell | 安装样式 | PCB |
| 供货尺寸 | No | 壳体材料 | Nylon |
| 总长度 | 28.96 mm | 主要材料 | Interconnect |
| 端接样式 | Screw | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 3 | 位数 | 3 |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 典型触点布局 | In-Line |
| 每排/每行位置数 | 3 | ||
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | :Universal MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 3 |
| 适用产品/相关产品 | Universal MATE-N-LOK Series | ||
