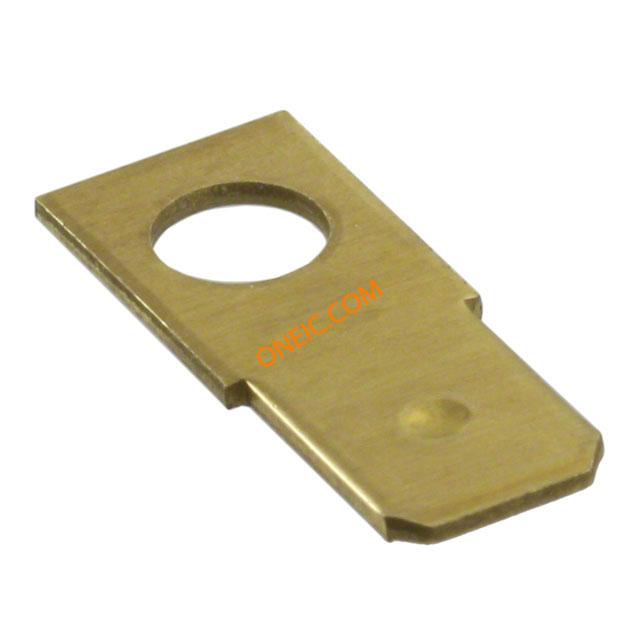

点击放大查看
63038-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal M 18.16mm 7.49mm Loose Piece Terminals 250 FASTON TAB 032 B Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON .250 BRASS Quick Disconnect Terminal M 18.16mm 7.49mm Loose Piece Product Highlights:TabTab Type = Stud MountConnection Type = SingleTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, MALE DISCONNECT, 0.25IN, SCREW Quick Disconnect Tab Single Straight Stud Mount Stud Hole Brass 6.35 x 0.81 mm FASTON 250 TAB .032 BR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Not Required | 深度 | 7.49 mm |
| 表面处理 | None | 重量 | 0.00001 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Not Insulated |
| 端接方式 | Screw, Rivet, Stud | 基体材料 | Brass |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Male Disconnect | 接触镀层 | :- |
| 触头材料 | Brass | 绝缘颜色 | :- |
| 总长度 | 0.715" (18.16mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Without | 端接样式 | Quick Disconnect |
| 接触件端接 | Without | 绝缘材料 - 材质 | :- |
| 安装孔直径 | With | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Male |
| 系列 | 630 | 产品子类型 | Tab |
| 连接类型 | Single | 其他规格 | Stud Mount |
