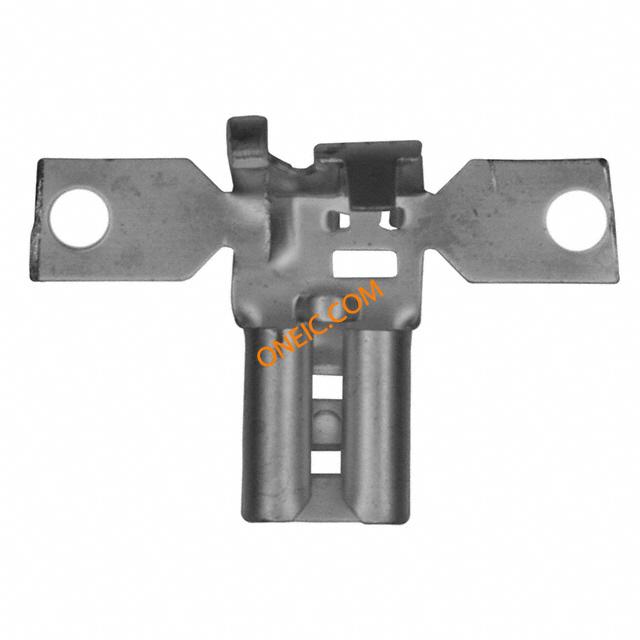

62591-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 13.46mm Tin Strip Terminals FASTON RECEPTACLE FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 16-20AWG .187 Quick Disconnect Terminal 16-20AWG RCP 13.46mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, CRIMP, RECEPTACLE, 20-16AWG TERMINAL, FLAG DISCONNECT, 0.187IN CRIMP TE Connectivity FASTON .187 系列 非绝缘 镀锡触芯 旗形压接端子 , 4.75 x 0.81mm FASTON .187 RECEPTACLE 20-16 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 187 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Yellow | 表面处理 | Tin |
| 重量 | 0.005 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Stranded |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 12-10 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 0.187 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Flag | 箔压接区域 | Tab-Lok |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 刀片材料 | :Brass | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 2.79-4.32 [.110-.170] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
