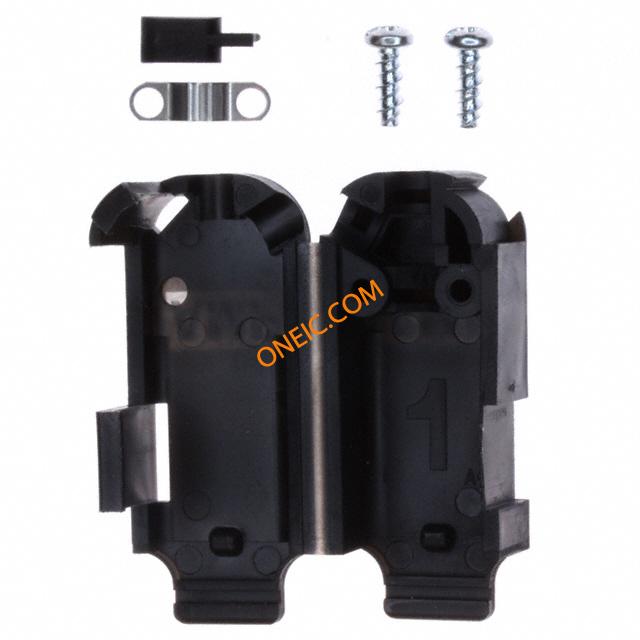

5750100-1

点击放大查看

5750100-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell/Cable Clamp Polypropylene Individual D-Sub Backshells E CABLE CLAMP Cable Clamps CONN BACKSHELL DB9 PLASTIC Backshell/Cable Clamp 120°/180° 1 Shell Size Polypropylene Individual Backshell/Cable Clamp 120°/180° 1 Shell Size Polypropylene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = One-Piece Quick SnapStraight(180°)/120° Cable Exit AngleCable Insulation Diameter = 1.91 - 6.35 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 1, POLYPROPYLENE Hood;D-Sub;9Pos;Straight/120DegExit;AMP;Polypropylene;0.075-0.250InCblDia TE Connectivity AMPLIMITE 系列 9 路 直 黑色 D-sub 连接器底壳 , 带应力消除 KIT,SZ 1 CABLE CLAMP
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

交货时间70 Days子类别Backshells
产品类别D-Sub Backshells标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black重量0
材料（通用）Stainless Steel包装方式Bulk
屏蔽Unshielded出线方向Straight(180°)/120°
电缆类型Round外壳尺寸1
屏蔽类型No螺纹尺寸None
外壳镀层None电缆直径0.075-0.250In.
电缆端类型Variable Entries电缆材料Polypropylene
外壳材料（壳体）Polypropylene本体材料:PP (Polypropylene)
包装数量Individual Kit电缆端接方式One-Piece Quick Snap
绝缘直径1.91 – 6.35 [0.075 – 0.250]位数9
外壳尺寸-插件:DE衬套/护套类型Without
电缆对数2后壳材料及镀层Polypropylene
控制侧电缆固定器Without

产品信息

备注Kit Contains: 1 Hinged Cable Clamp, 2 Self-tapping Screws, 1 Strain Relief Clip类型Backshell/Cable Clamp
系列:AMPLIMITE产品特性Assembly Kit
硬件配件Strain Relief制造商全称AMP
产品子类型Backshell/Cable Clamp附件类型Hinged Backshell
射频系列/标准5750100适用产品/相关产品750100-1

文档与媒体

在线文档
TE.Connect?C=1&LG=1&I=13&PN=5750100-1&M=BYPN&Search=Search
PDF 文档
1639165.pdf
