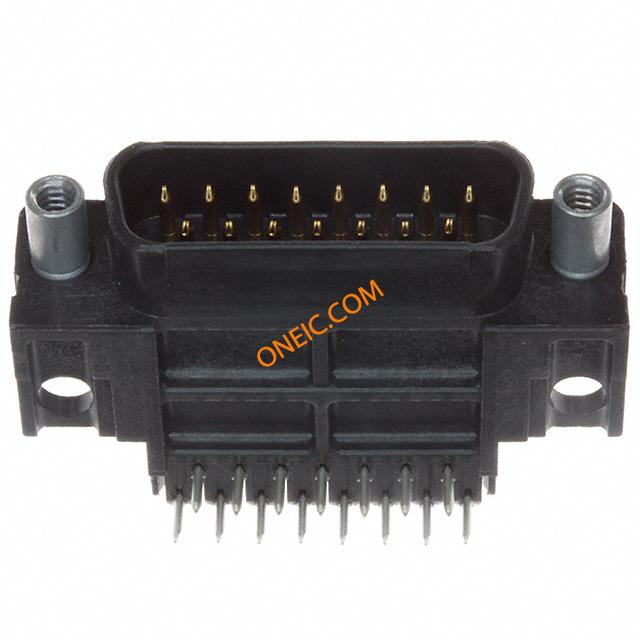

5748952-1

点击放大查看

5748952-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.76mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors AMP III PLUG 15P RA 590 FFSCRL Standard Board Mount Connectors CONN D-SUB PLUG R/A 15POS PCB AU Conn D-Subminiature PIN 15 POS 2.76mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG Conn;D-Sub;PCBPlug;15Pos;RTAng;HD-20Series;20AWG;AllPlasticShell AMP III PLUG 15P RA 590 FFSCRLK
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量112

合规参数

RoHSRoHS Compliant海关税号00000000
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V最大额定电流6A

机械参数

颜色Black间距2.76 mm
密封型No重量0
包装方式Tray外壳尺寸2
端接方式Solder触头类型Signal
第二连接器With安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Mating Side; Female Screwlock (4-40)接地类型Without
安装样式Through Hole排数2
电路板厚度0.093 [2.36]连接器样式D-Sub
锁定特性Female Screwlocks, Fixed本体材料:Plastic
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic面板安装类型Without
接地凹痕Without外形尺寸 长x宽x高14.99 [.590]
端接样式Through Hole连接器颜色None
触点数15接触件端接:Through Hole Vertical
位数15外壳尺寸-插件All Plastic
安装孔直径3.18 [.125]端子柱长度3.18 [0.125]
接触镀层厚度30µin (0.76µm)螺钉材料 - 镀层Zinc
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
制造商全称AMP

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
5748952-1?RQPN=5748952-1
