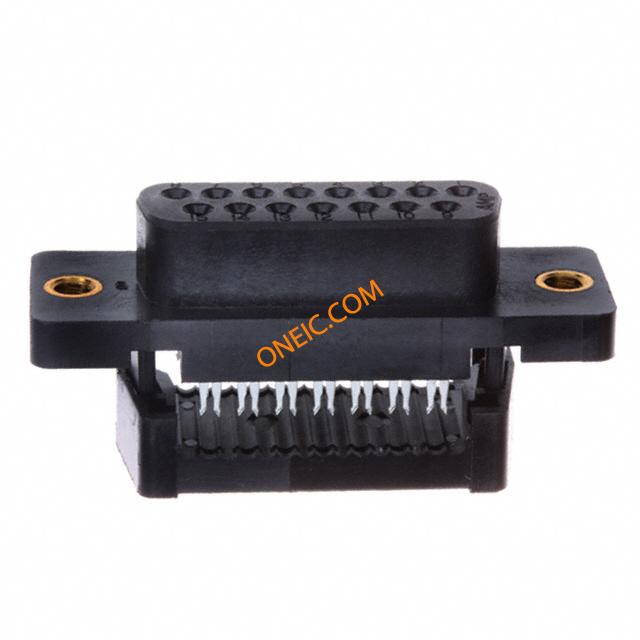

点击放大查看
1658609-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S IDC RIBBON Standard Cable Connectors CONN D-SUB RECEPT 15POS 30 GOLD Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 15ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT TE Connectivity AMPLIMITE HDF-20 系列 1.27mm 节距 15 路 IDC D-sub 连接器, 插座, 热塑性外壳 15 POS HDF RCPT, AP, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 最大额定电流 | 1.25A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.59 mm |
| 间距 | 2.76 mm | 高度 | 18.61 mm |
| 重量 | 0 | 包装方式 | Tube |
| 电缆类型 | Ribbon Cable | 外壳尺寸 | 2 |
| 端接方式 | IDC, Ribbon Cable | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 电缆开口 | 747275-3 | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin | 连接器类型 | Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | D-Sub | 插入件材料 | Brass |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Plastic |
| 材料表面处理 | None | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 39.14 mm | 接地凹痕 | Without |
| 端接样式 | IDC | 触点数 | 15 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] |
| 位数 | 15 | 外壳尺寸-插件 | All Plastic |
| 螺纹/螺钉/孔尺寸 | Standard | 接触镀层厚度 | 30µin (0.76µm) |
| 外部壳体材料 | Thermoplastic | 线规或范围 - AWG | 0.08 - 0.15 [28-26] |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | Female |
| 系列 | HDF-20 (Ribbon Cable) | 产品特性 | Feed Through |
| 对数 | 747275-3 | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
