点击放大查看

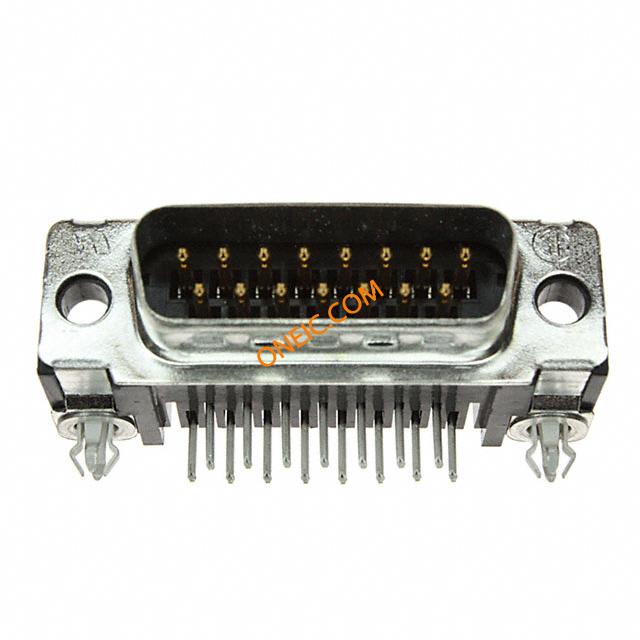

5747841-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 MSFL PLUG RA 318 (FM BL) Standard Board Mount Connectors CONN D-SUB PLUG R/A 15POS Conn D-Subminiature PL 15 POS 2.74mm Solder RA Thru-Hole 15Terminal 1Port Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsConnector Style = PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub HD20 Series 15 Position Right Angle Plug Board Mount D-Sub Connector 15 MSFL PLUG RA 318 (FM,BL) |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 104 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 外形尺寸(长x宽) | 2 |
| 镀层 | Tin over Nickel | 占位面积 | 8.08 [.318] |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | Round | 外壳尺寸 | 2 |
| 端接方式 | Solder | 触点形式 | Signal |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | Without | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | With |
| 尖端材料（笔尖） | Tin over Copper Flash | 安装样式 | Through Hole |
| 排数 | 2 | 壳体镀层 | 镀锡铜薄层 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 [1.57] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 磁芯材质 | 黄铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 安装特性 | 板锁 | 包装数量 | 104 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | With | 端接样式 | Through Hole |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 15 | 位数 | 15 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 触点材料 - 镀层 | 锌 |
| 外壳与棱镜材料 | 否 | 后壳材料及镀层 | 镍打底镀锡 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Board Lock, Ground Strap, Grounding Indents | 可密封 | 否 |
| 主要用途 | Board Lock, Ground Strap, Grounding Indents | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 是 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 mm [ .062 in ] |
