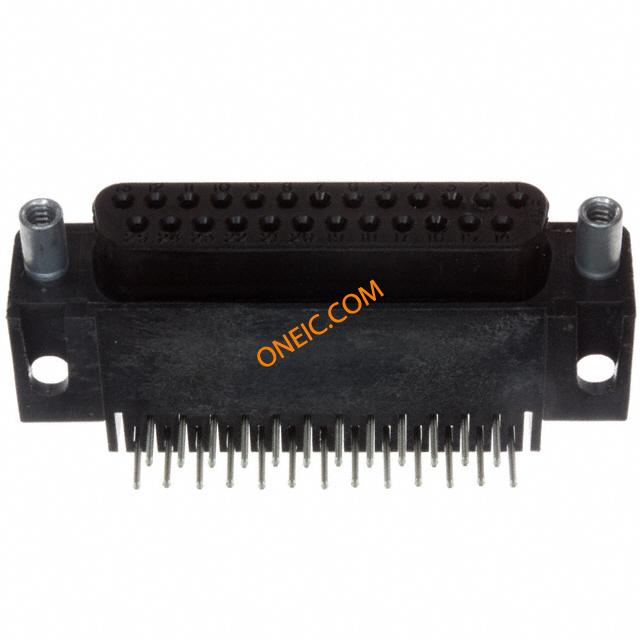

5747461-5

点击放大查看

5747461-5

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S RA590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub HD-20 RCPT 25P RA 590 FFSCRLK
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量70

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗母端螺钉锁，固定最大额定电流6A
最小供电电压250VAC

机械参数

颜色Black深度24.68 mm
间距2.76 mm高度11.48 mm
密封型No外形尺寸(长x宽)3
包装方式Tray壳体颜色黑色
引脚样式Round外壳尺寸3
端接方式Solder触头类型Signal
柱间距.108外壳表面处理锡
第二连接器With触点形状Round
安装类型Right Angle连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Mating Side; Female Screwlock (4-40)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Plastic
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料磷青铜锁定特性Female Screwlocks, Fixed
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic总长度53.03 mm
安装特性安装孔包装数量70
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕Without外形尺寸 长x宽x高14.99 [.590]
端接样式Through Hole连接器颜色None
外径.66 mm [ .026 in ]触点数25
位数25外壳尺寸-插件All Plastic
端子螺钉表面处理透明铬酸盐安装孔直径3.18 [.125]
端子柱长度3.18 [0.125]接触镀层厚度Flash
螺钉材料 - 镀层Zinc触点材料 - 镀层锌
外壳与棱镜材料是外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别Female系列HD-20
可密封否制造商全称AMP
预装是产品子类型连接器
端口数1 Port其他规格否

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 mm [ .093 in ]
