点击放大查看

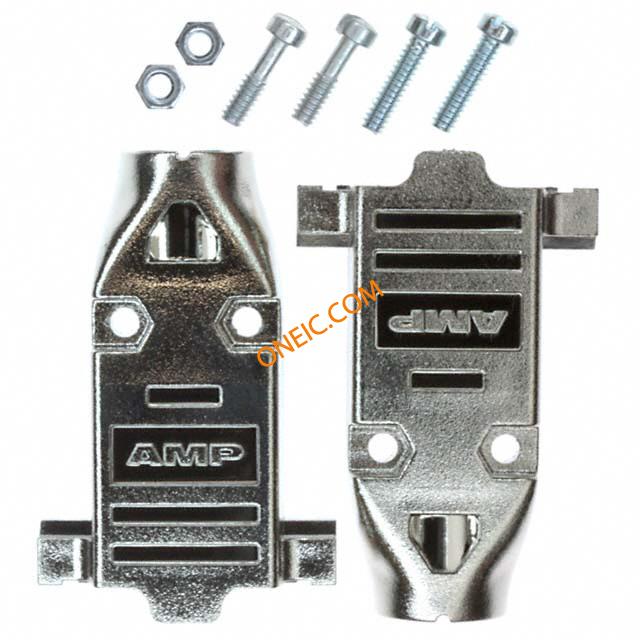

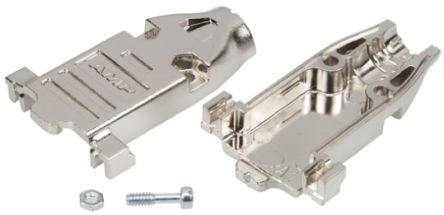

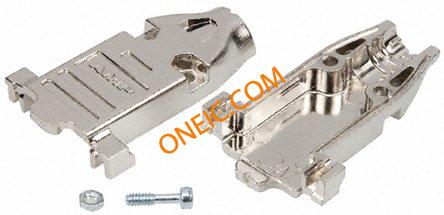

5745854-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 9 POS D-Sub Backshell/Cable Clamp Thermoplastic Bright Nickel Over Copper Finish Individual Kit D-Sub Backshells MTL PLTD PLST KIT 9 .37 Cable Clamps CONN BACKSHELL DB9 METAL PLATED AMPLIMITE shielded backshell kit, size 1 Backshell/Cable Clamp 180� 1 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 1 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 1 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 9.40 mmNumber of Positions = 9Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 1, THERMOPLASTIC Hood;D-SUB;9Pos;Straight;AMP;MetallizedPlastic;0.370In.CblDia;EMI/RFIShield TE Connectivity 9 路 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 1 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 防护类型 | Clamp,Cable | ||
机械参数
| 颜色 | Silver | 深度 | 48.51 mm |
| 宽度 | 1.215In. | 高度 | 15.74 mm |
| 长度 | 1.91In. | 重量 | 0.014 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 1 | 螺纹尺寸 | #4-40 |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 9.4 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 总长度 | 30.86 mm |
| 位数 | 9 | 外壳尺寸-插件 | :DE |
| 电缆对数 | 1 | 外部壳体材料 | :Plastic |
| 后壳材料及镀层 | MetalizedPlastic | ||
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5745854 | 适用产品/相关产品 | 745854-1 |
