1757819-6

点击放大查看

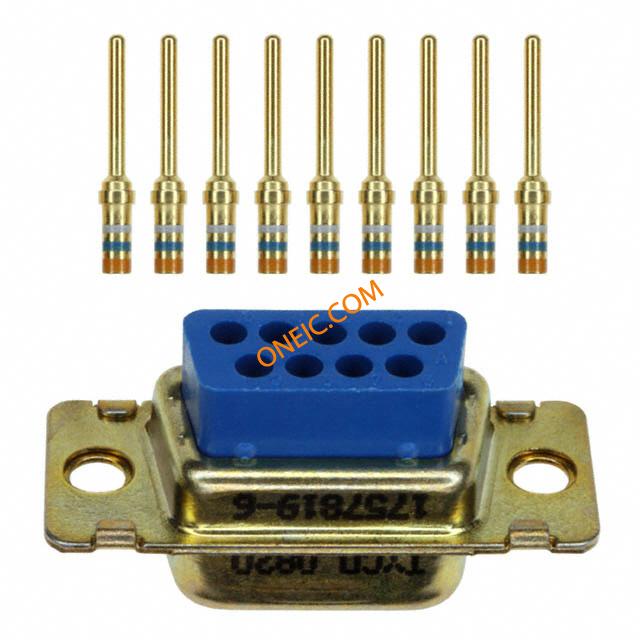

1757819-6

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9 POS PLUG, CRIMP STD DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 109 d-sub cable plug, 9 pin Conn D-Subminiature PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 9Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, PLUG, 9POS, STEEL CONN D-SUB PLUG 9POS CRIMP Conn;D-Sub;CablePlug;9Pos;STR;109Series;Crimp;20AWG TE Connectivity AMPLIMITE 109系列 9路 直 军用压接 D-Sub 连接器, 插头 AMPLIMITE,ASY,PLUG,STD,109,ZN,1,CT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/4-1产品类别D-Sub Standard Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSRoHS Compliant标准MIL-C-24308
海关税号85369010抗辐射加固No
资质认证No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志Yes

电气参数

连接器阻抗No最大额定电流7.5A

机械参数

颜色Blue深度16.59mm
宽度12.93mm高度12.93 mm
长度31.19mm重量0.009
材料（通用）Stainless Steel包装方式Bulk
外壳尺寸1导线线规20
端接方式Crimp触点尺寸20
触头类型Crimp Snap-in非磁性No
安装类型Panel Mount外壳镀层Zinc
行程角度Straight连接器类型Crimp
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
安装样式Wire引脚数With
排数2外壳材料（壳体）Steel
连接器样式D-Sub本体材料:Metal
触头材料Copper Alloy壳体材料PET
总长度31.19 mm主要材料D-Subminiature
尺寸/外形31.19 x 12.93 x 16.59mm端接样式Crimp
触点数9位数9
外壳尺寸-插件:1衬套/护套类型No
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Yellow Chromate Plated Zinc
外壳尺寸，连接器布局1 (DE, E)

产品信息

备注Size 20 contacts supplied with connectors are loose piece.类型D-Subminiature
连接器性别PIN系列109
密度Standard制造商全称AMP
产品子类型Connector连接类型Wire
端口数1 Port设备部件号M24308/4-1
适用产品/相关产品:Size 20 Crimp Snap-in Contacts
