点击放大查看

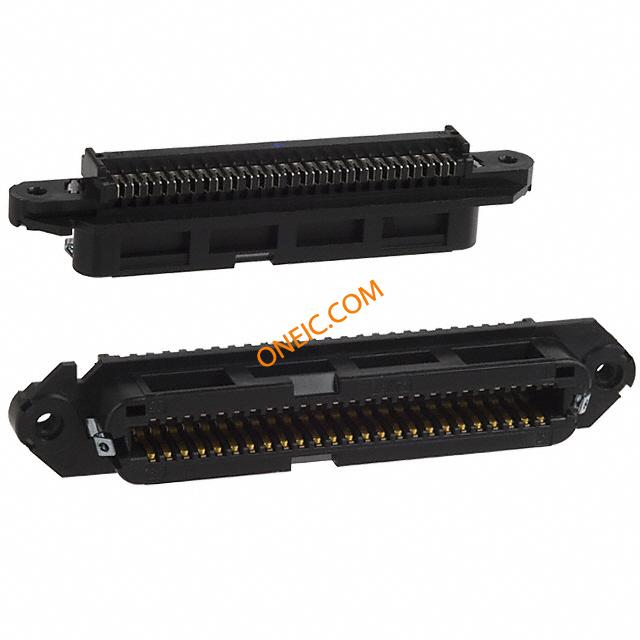

5553921-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 50 POS 2.16mm IDT Cable Mount Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 50 POSN, B SLOT I/O Connectors LOCKING LATCH 50P receptacle black Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPCONNECTORASSY,ASSY,RCPT,50POSN,BSLOT |
| 分类 |
商业参数
| 产品 | Micro Ribbon Connectors | 交货时间 | 28 Days |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 整体式锁销 | ||
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 厚度 | Thick | 壳体颜色 | 黑色 |
| 电缆类型 | 7 Strand, Solid | 铜缆类型 | B |
| 屏蔽类型 | No | 端接方式 | IDT |
| 螺纹尺寸 | 4-40 UNC 2B | 第二连接器 | With |
| 外壳颜色 | Blue | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Palladium Nickel Over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | 磷青铜 | 锁定特性 | Integral Locking Latch |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Polyphenylene | 包装数量 | Tray |
| 面板安装类型 | Without | 端接样式 | Wire |
| 线规 - 端部 | 24 | 触点数 | 50 POS |
| 绝缘直径 | 1.14 [.045] Max. | 位数 | 50 |
| 外壳材料及表面处理 | 蓝色 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 0.51-0.40 [24-26] | 线规或范围 - mm² | 0.20² [24] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Latch Lock | 产品子类型 | Connector |
| 适用产品/相关产品 | 553921-1 | ||
