554548-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Connector Kit Plug 50 POS Bulk 2.16 [.085] IDC Connectors CONN CHAMP PLUG 50POS .085 IDC Headers & Wire Housings PLUG KIT 50 POS B SLOT INT LKG 2.16 [.085] IDC Connectors Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Blue | 出线方向 | 90° |
| 电缆类型 | 7 Strand, Solid | 铜缆类型 | B |
| 屏蔽类型 | No | 端接方式 | IDC |
| 第二连接器 | With | 安装类型 | Free Hanging (In-Line), Right Angle |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Insert, Threaded (4-40) | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 锁定特性 | Integral Locking Latch |
| 外形（宽 x 高） | Standard | 包装数量 | Bulk |
| 面板安装类型 | Without | 位数 | 50 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.20² [24] |
| 电缆外径（最小） | 10.80 [0.425] | ||
产品信息
| 备注 | Adjustable Cable Clamp; Meets requirements of FCC Part 68 RJ21 for standard tel | 类型 | Connector Kit |
| 连接器性别 | Plug | 产品特性 | Assembly Kit, Backshell, Cable Clamp |
| 产品子类型 | Connector Kit | 射频系列/标准 | 554548-1 |
环境参数
| 保护功能 | Without | ||
相关型号
553603-1
te connectivity / amp
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH RECEPT-SCREW Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPLATCHCONNECTOR,RCPTASSY,50POSN,SCRLK,LPF 50 Position 1.27 mm Pitch Cable to Board IDC Receptacle Connector TE Connectivity CHAMP Latch 系列 2行 50路 1.27mm节距 母 IDC 连接器 , 面板安装 RCPT ASSY,50 POSN,SCR LK,L PF
5553921-1
te connectivity / amp
Conn IDC Connector F 50 POS 2.16mm IDT Cable Mount Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 50 POSN, B SLOT I/O Connectors LOCKING LATCH 50P receptacle black Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPCONNECTORASSY,ASSY,RCPT,50POSN,BSLOT
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool

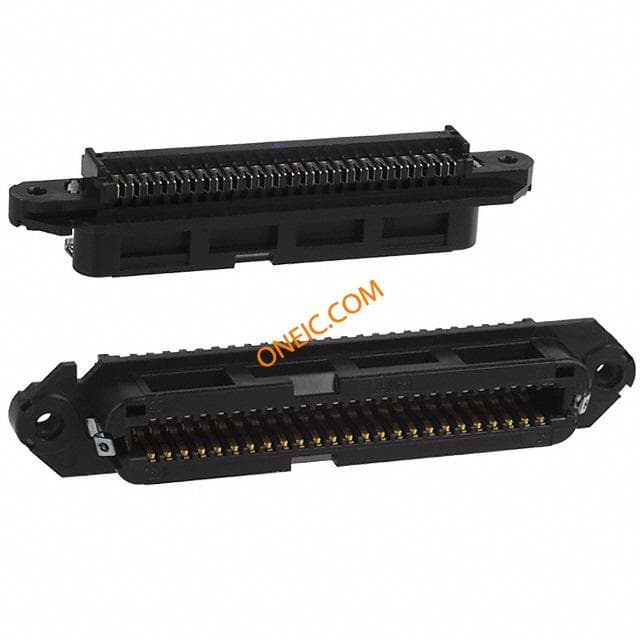

553921-1
