点击放大查看

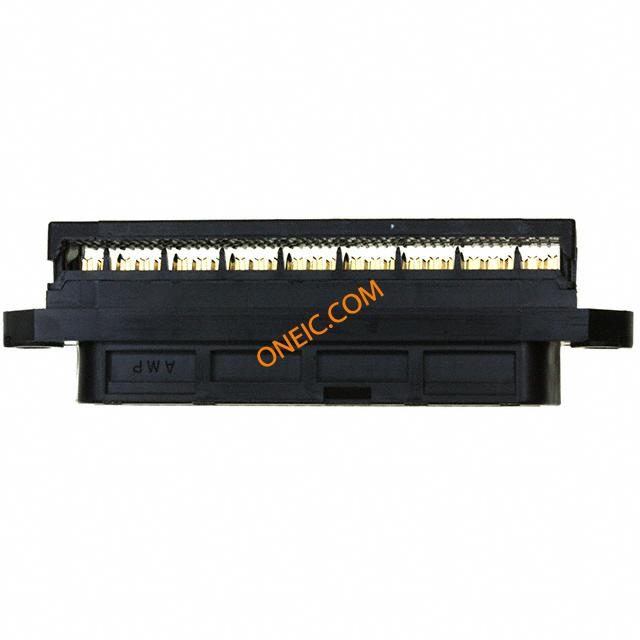

554090-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH RECEPT-BAIL I/O Connectors RECPT 50P PANEL MNT low profile plastic Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CONNECTOR,RECEPTACLE,IDC,50POSITION,PANELMOUNT TE Connectivity CHAMP Latch 系列 2行 50路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 RCPT ASSY,50 POS,PANEL MTG,LPF |
| 分类 |
商业参数
| 交货时间 | 98 Days | 其他名称 | A1570 |
| 子类别 | Connector SCSI | 产品类别 | Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 20.82 mm |
| 间距 | 1.27 mm | 高度 | 15.24 mm |
| 重量 | 0.014 | 包装方式 | Tray |
| 电缆类型 | Ribbon Cable | 屏蔽类型 | No |
| 端接方式 | IDT | 第二连接器 | With |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel | 法兰特征 | Hollow, Unthreaded |
| 安装样式 | Cable | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | Bail Lock, Screwlocks |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 83.31 mm |
| 包装数量 | Tray | 面板安装类型 | With |
| 端接样式 | IDC | 触点数 | 50 |
| 接触件端接 | :IDC / IDT | 位数 | 50 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | :Champ | 产品特性 | IDC Connectors |
| 产品子类型 | Connector | 端口数 | 1 Port |
相关型号

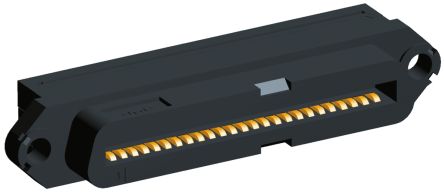

552032-1
