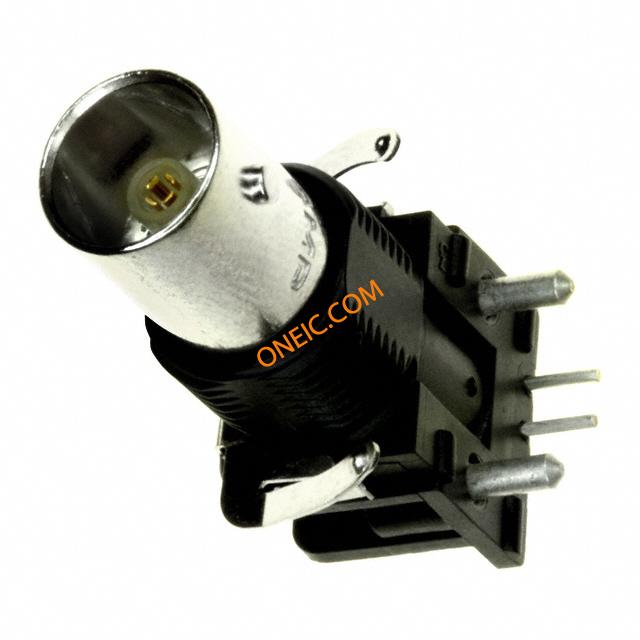

5415103-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Tray Decoupled BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB RF Connectors / Coaxial Connectors JACK DECOUPLER R/A 75 OHM Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Tray Product Highlights:Terminate To Printed Circuit BoardConnector Impedance = 75 ?Capacitance = 9,400 pFWithout ESD ProtectionVoltage Rating = 1500 VDCSearch Keywords:NIC, Network Interface Cards, PC Cards, RF, JACK,DECOUPLER,RTANG,BNCPCB |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 31 |
合规参数
| RoHS | Lead free / RoHS Compliant | ESD保护 | Without |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 阻抗 | 75 Ohm | 电容 | 9,400 |
| 最大频率 | 1GHz | 连接器阻抗 | Standard |
| 直流反向电压（Vr）（最大） | 1500 | ||
机械参数
| 尺寸 | Standard | 包装方式 | Tube |
| 本体表面处理 | Nickel | 端接方式 | Solder |
| 基体材料 | Zinc | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Standard | 连接器样式 | BNC |
| 高度（英寸） | 11.68 [0.460] | 外形（宽 x 高） | Ultra-low |
| 触头材料 | Phosphor Bronze | 面板安装类型 | Lockwasher and Nut |
| 主要材料 | BNC | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polymethylpentene |
| 中心触点镀层工艺 | Gold (3) | 柱体长度（配合） | 4.01 [0.158] |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Guide, Decoupling Capacitance | 极性 | Normal |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | PCB | 射频系列/标准 | 5415103 |
