点击放大查看

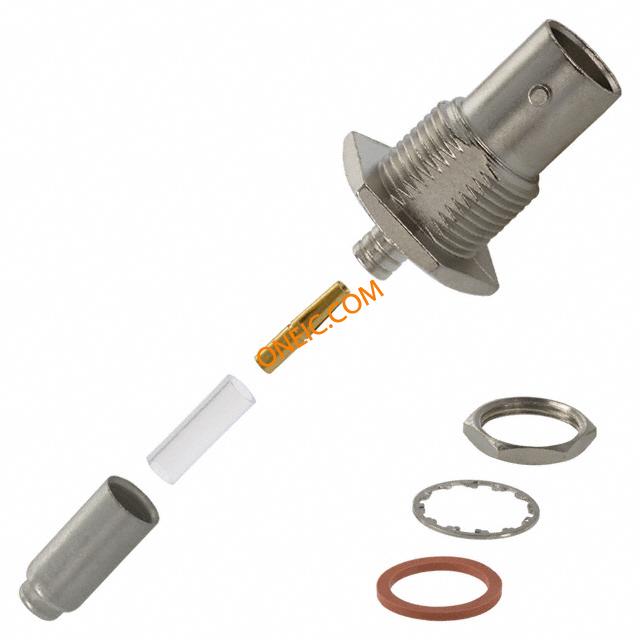

5413771-3
| 制造商 | |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors JACK BLKHD COML HEX CRIMP Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC BHD JACK STR 50 OHM CRIMP Jack,Bulkhead;50Ohms;Straight;Coaxial;BNC;Gold;BerylliumCopper;Nickel TE Connectivity BNC 直 50Ω 电缆安装 隔板安装 BNC 连接器, 插口, 压接 端接, RG174/U, RG188/U, RG316/U电缆, 镀镍本体 JACK BLKHD,COML BNC,HEX CRIMP |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 最大频率 | 4GHz |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 尺寸 | Standard | 重量 | 0 |
| 包装方式 | Bulk | 电缆类型 | RG-174/U, RG-188/U, RG-316/U |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 188, 316 |
| 方向 | Straight | 端接方式 | Crimp |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Bulkhead | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper | 主要材料 | BNC |
| 端接样式 | Crimp | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polymethylpentene (PMP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 5413771 | 应用细节 | Commercial |
环境参数
| 工作温度 | - 55 C to + 85 C | ||
