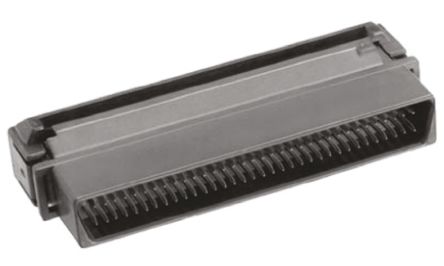

5390377-5

点击放大查看

5390377-5

制造商
TE Connectivity Ltd.
描述
Conn SCSI M 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray .050 Series Cable Connectors (SCSI) CONN PLUG 50POS 30AWG .050SERIES I/O Connectors PLUG 50 POS 30 AWG Conn SCSI M 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Ribbon CableRibbon Cable Centerline Spacing = .64 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, PLUG, 50POS, IDC / IDT TE Connectivity .050 Series 系列 50 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, IDC 50 POS A/P PLUG 25 CL 30AU
分类
传感器与换能器光电与工业光学传感器环境光传感器
对参数有疑问？问 AI 助手

商业参数

产品SCSI Connectors产品类别I/O Connectors
标准包装数量Trays工厂包装数量1400

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite 0.050 Series额定电压30V
最大额定电流1A最小供电电压30VAC

机械参数

颜色Black深度8.3 mm
间距1.27 mm高度17.1 mm
重量0.005包装方式Tray
电缆类型Ribbon Cable屏蔽类型No
端接方式IDT触头类型Signal
第二连接器Without安装类型Cable Mount
外壳镀层Nickel连接器类型IDC
接触镀层Tin over Nickel安装导轨Without
安装样式Cable排数2
外壳材料（壳体）Zinc Die Cast连接器样式D-Type
触头材料Phosphor Bronze壳体材料Polyester GF 30%
总长度40.07 mm包装数量Tray
面板安装类型Without端接样式With
触点数50接触件端接:IDC / IDT
位数50排距 - 配合0.64 [0.025]
接触镀层厚度30µin (0.76µm)线规或范围 - mm²0.03² [32], 0.05² [30]
第一连接器安装类型:Cable外壳尺寸，连接器布局0.050 Pitch x 0.100 Row to Row

产品信息

类型SCSI制动位Without
连接器性别M系列Series III
产品特性Feed Through制造商全称AMP
产品子类型Connector连接类型Wire
端口数1

环境参数

插拔次数:500工作温度-55°C ~ 85°C
结工作温度85C

文档与媒体

在线文档
5390377-5?RQPN=5390377-5

相关型号

749877-5

749877-5

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 50POS .050 PNLMT W/COV I/O Connectors 50 50SR PANEL MO UNT RCPT .050 Series Cable Connectors (SCSI) Product Highlights:ConnectorConnector Type = Receptacle50 PositionsWire/Cable Type = Ribbon Cable, Round Jacketed CableRibbon Cable Centerline Spacing = 1.27 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub 50 50SR PANEL MOUNT RCPT

¥81.6680
详情
750640-1

750640-1

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN 50POS .05 AMPLMT RECP PNLMT I/O Connectors RECEPTACLE 50 POS 320 Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50Wire/Cable Type = Ribbon Cable, Round Jacketed CableRibbon Cable Centerline Spacing = 1.27 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub 50 50SR PANEL MOUNT RCPT

¥60.9280
详情
786862-5

786862-5

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR PANEL MO UNT RCPT S/A .050 Series Cable Connectors (SCSI) CONN RCPT 50POS .050 PNLMT W/COV .050 Series Cable Connectors (SCSI) Product Highlights:ConnectorWith ContactsHousing Gender = Receptacle50 PositionsWire/Cable Type = Ribbon Cable, Round Jacketed CableSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub 50 50SR PANEL MOUNT RCPT S/A

¥65.1440
详情
1-786862-5

1-786862-5

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 50POS .050 PNLMT W/COV I/O Connectors 50 50SR PANEL MOUNT RCPT S/A .050 Series Cable Connectors (SCSI) Product Highlights:ConnectorWith ContactsHousing Gender = Receptacle50 PositionsWire/Cable Type = Ribbon Cable, Round Jacketed CableSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub 50 50SR PANEL MOUNT RCPT S/A

¥54.9984
详情
749656-5

749656-5

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT ST Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 50POS .050 PNLMT W/COV I/O Connectors 50 50SR PANEL MOUNT 320 50 50SR PANEL MOUNT RCPT

¥51.4284
详情

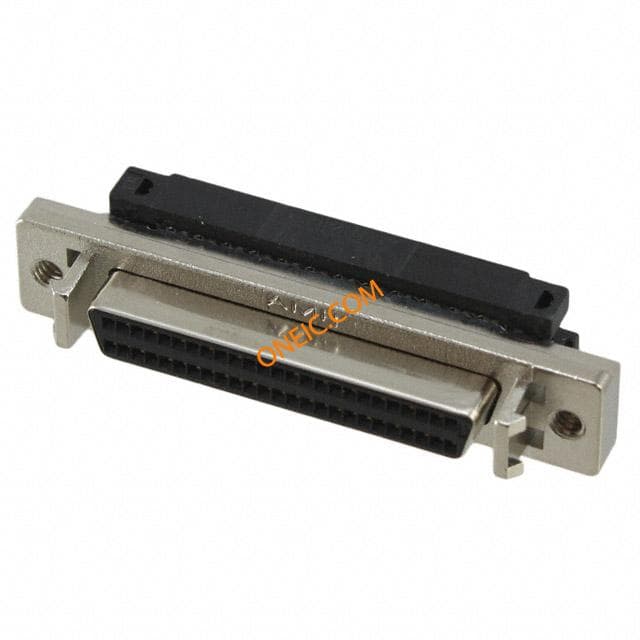

5-750640-1

5-750640-1

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN 50POS .05 AMPLMT RECP PNLMT TE Connectivity III Series, Female 50 Way Straight Panel Mount SCSI Connector 1.27mm Pitch, Solder, Latch Block I/O Connectors 50 50SR PNL MT RCPT Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub TE Connectivity III 系列 50 路 1.27mm节距 直 面板安装 母 SCSI 连接器, 焊接, 闭锁块 50 50SR PANEL MOUNT RCPT, ROHS

¥56.1680
详情
6-786862-5

6-786862-5

te connectivity / amp

Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR PANEL MOUNT RCPT S/A .050 Series Cable Connectors (SCSI) CONN RCPT 50POS .050 PNLMT W/COV 50 50SR PANEL MOUNT RCPT S/A, ROHS 50 50SR PANEL MOUNT RCPT S/A, ROHS Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub

¥92.2896
详情

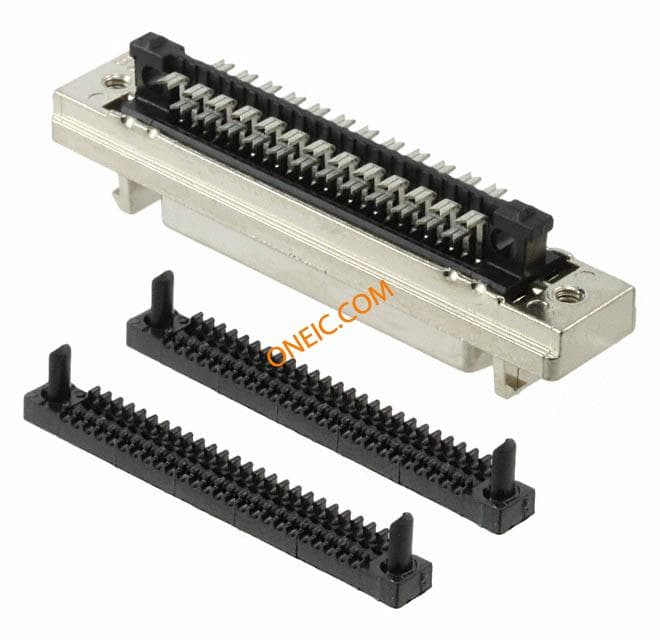

5-786862-5
