点击放大查看

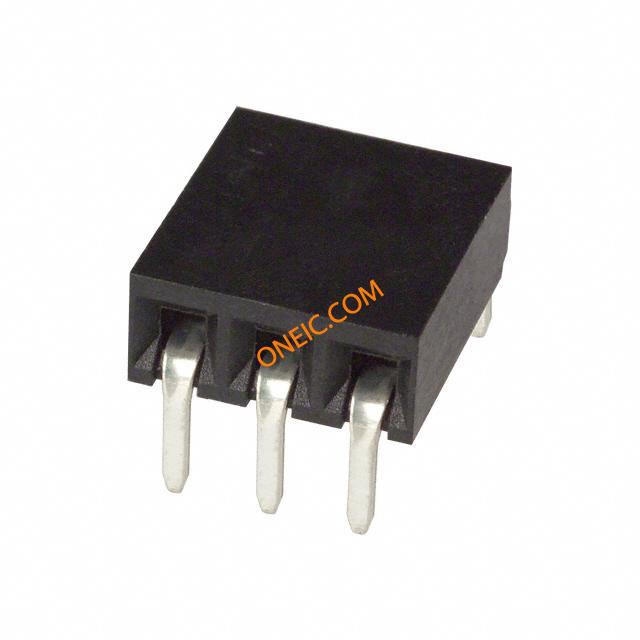

535676-2

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 3POS .100 RT/ANG AU Headers & Wire Housings RECEPT 3POS .100 R/A AU Conn Socket Strip SKT 3 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 3Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	74

合规参数

RoHS

Contains lead / RoHS non-compliant

电气参数

最大额定电流

2 A

机械参数

颜色	Black	间距	2.54 mm
包装方式	Tube	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole, Right Angle
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	端接样式	Through Hole
触点数	3	位数	3
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 55 C to + 125 C

文档与媒体

在线文档

535676-2?RQPN=535676-2
