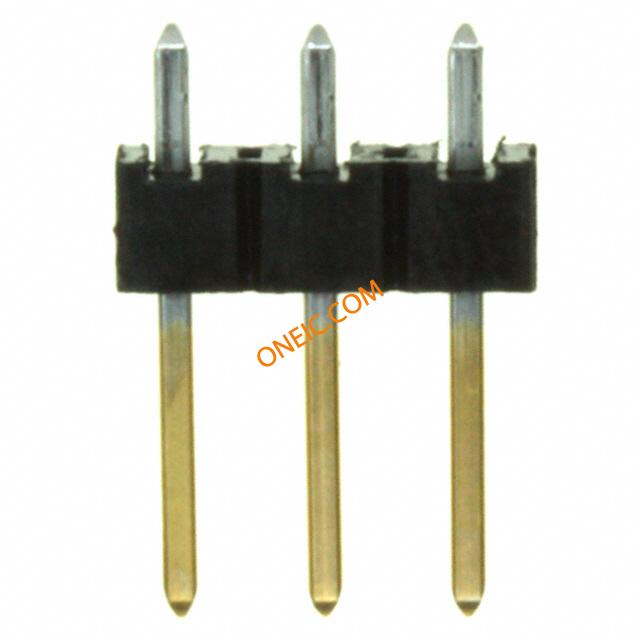

146225-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 3 POS VERT PCB Headers & Wire Housings HDR SRST B/A 100CL 2160 Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 03 MODII HDR SRST B/A 100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定交流电压 | 30 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 750 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 触点形状 | Square | 安装类型 | Vertical |
| 连接器类型 | Breakaway | 接触镀层 | Gold |
| 安装样式 | 标准 | 排数 | 1 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | Without |
| 包装数量 | 540 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一连接器类型 | 分离 | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 3 |
| 端接表面处理 | 不带 | 位数 | 3 |
| 柱体长度（配合） | 5.84 mm | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 5.84 [0.230] | 表面贴装焊盘尺寸 | Yes |
| 端子柱长度 | 2.29 [0.090] | 接触镀层厚度 | 5µin (0.127µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | Yes |
| 工作温度 | -65 – 105 | 封装热阻 | 1.57 mm [ .062 in ] |
| 结工作温度 | 是 | ||
