5227161-9

点击放大查看

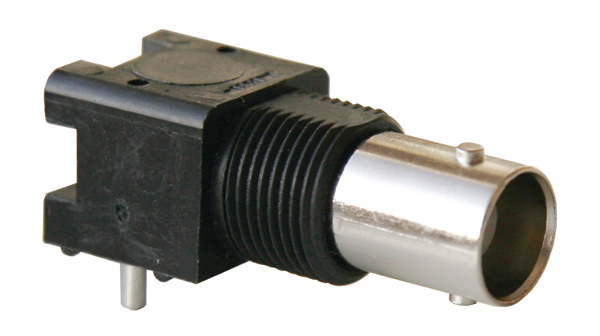

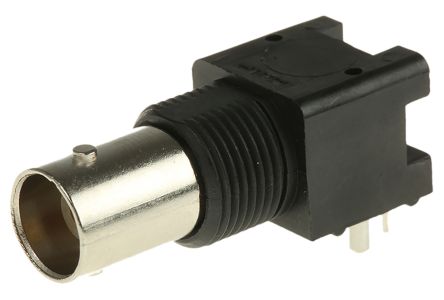

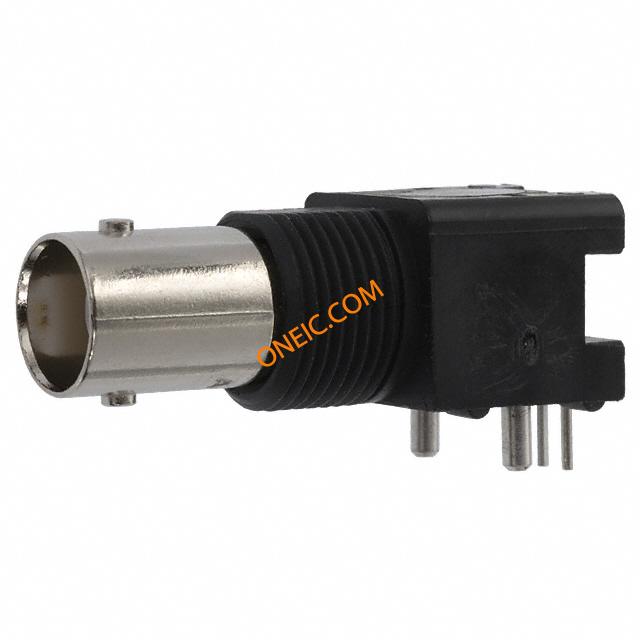

5227161-9

制造商
TE Connectivity Ltd.
描述Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC Jack pcb r/a 50ohm RF Connectors / Coaxial Connectors R.A. JACK 50 OHM Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONNECTOR,RF,BNC,JACK,PCB,RIGHTANGLE,WITHPINS BNC appliance socket, angled 50 Ohm, 5227161-9, TE Connectivity TE Connectivity 50Ω 直角 通孔 母 BNC 连接器 , 0 → 4GHz, 焊接 端接, 镀镍本体 RTANG JACK W/MTG PINS,BNC PCB
分类
连接器解决方案同轴连接器(RF)射频同轴连接器
对参数有疑问？问 AI 助手

商业参数

产品PCB Connectors产品类别RF Connectors / Coaxial Connectors
标准包装数量Rail / Tube工厂包装数量35

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志No

电气参数

频率0 to 4 GHz阻抗50 Ohm
隔离电源No额定电压500 V
最大频率4GHz连接器阻抗Without
阻抗（最大）（Zzt）50Ω绝缘电阻5000 MOhms

机械参数

尺寸Standard颜色Black
深度14.76 mm高度13.18 mm
密封型No包装方式Tube
壳体颜色黑色本体表面处理Nickel
方向Right Angle端接方式Solder
基体材料Valox外壳颜色Black
安装类型Through Hole行程角度RightAngle
连接器类型BNC接触镀层Gold
紧固类型Bayonet Lock外壳涂层Nickel
安装样式Standard壳体镀层Nickel
连接器样式BNC高度（英寸）13.18 [0.519]
触头材料Phosphor Bronze总长度34.93 mm
安装特性3.48 mm [ .137 in ]面板安装类型Lockwasher and Nut
主要材料BNC端接排数焊接
屏蔽层端接方式Solder接触件端接Solder
介电材料Polymethylpentene绝缘材料 - 类型Polymethylpentene
位数1第一连接器极性Female
中心触点表面处理金中心触点镀层工艺Gold (30)
柱体长度（配合）3.48 [0.137]中心触点材料Phosphor Bronze
供应商器件封装Right Angle表面贴装焊盘尺寸No
接触镀层厚度30第一连接器安装类型Panel
外管直径（最大）14.529 mm [ .572 in ]执行器距PCB垂直高度13.18 mm [ .519 in ]

产品信息

备注If an Insulating Bushing is required, see Part Number 330620.类型BNC
等级Commercial连接器性别RCP
系列BNC产品特性Board Guide
硬件配件No极性No
可密封否制造商全称AMP
产品子类型Connector连接类型PCB
端口数1射频系列/标准5227161

环境参数

工作温度- 55 C to + 85 C
