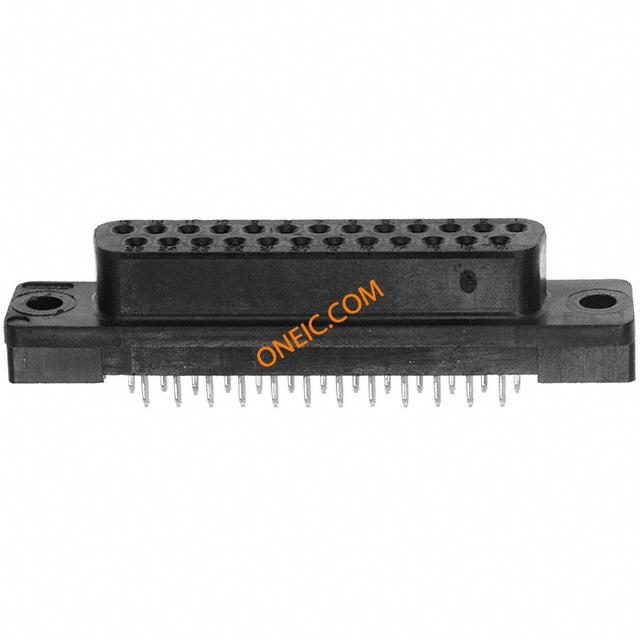

5207828-3

点击放大查看

5207828-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU AMPLIMITEHD20 PCB Receptacle Straight25P Receptacle; D-Subminiature; Receptacle; 25; Plastic; Phosphor Bronze; Vertical Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;PCBSocket;25Pos;STR;HD-20Series;28-24AWG;AllPlasticShell HD-20 RCPT 25P VERT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A34011产品类别D-Sub Standard Connectors
标准包装数量Rail / Tube工厂包装数量10

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black深度10.41 mm
间距2.77 mm高度12.17 mm
密封型No重量0.005
包装方式Tube外壳尺寸3
端接方式Solder触头类型Signal
第二连接器Without触点形状Round
安装类型Through Hole连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度53.09 mm面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕Without
端接样式Through Hole连接器颜色None
触点数25位数25
外壳尺寸-插件All Plastic安装孔直径3.05 [.120]
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All receptacles are preloaded with size 20 DF posted socket contacts类型D-Subminiature
连接器性别SKT系列HD-20
制造商全称AMP端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
5207828-3?RQPN=5207828-3
在线文档
TE.Connect?C=1&M=BYPN&TCPN=5207828-3&RQPN=5207828-3
PDF 文档
1648470.pdf

相关型号

5747238-4

5747238-4

te connectivity / amp
