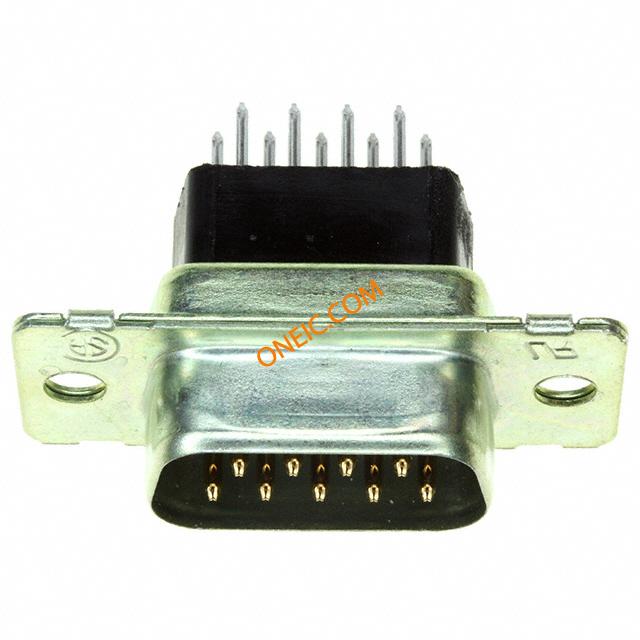

5205733-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09 PLUG SP/MS STD Standard Board Mount Connectors CONN PLUG VERT 9 POS GOLD PCB Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsConnector Style = PlugPCB Mount Angle = VerticalProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 PLUG SP/MS STD |
| 分类 |
商业参数
| 其他名称 | 52057337 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 17 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 尺寸 | .062, .093 | 颜色 | Black |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 直角 | 外壳尺寸 | 1 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 外壳表面处理 | 锌 |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 外壳镀层 | Zinc |
| 端子尺寸 | .12 | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57], 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Polyamide, GV | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA), Nylon, Glass Filled |
| 包装数量 | 17 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | Without |
| 端接样式 | Screw | 连接器颜色 | None |
| 外径 | .64 mm [ .025 in ] | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 端子柱长度 | 4.78 [0.188] |
| 接触镀层厚度 | Flash | 触点材料 - 镀层 | 聚酰胺，GV |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Plug | 系列 | HDP-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
