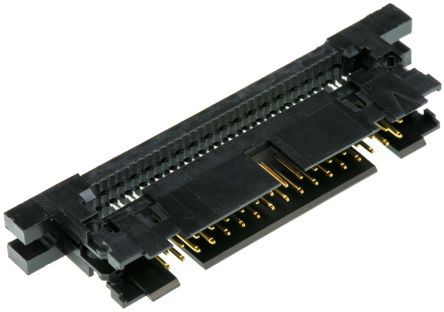

5111448-8

点击放大查看

5111448-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 34POS UNIV I/O W/EARS Ribbon cable conn.male,34 way,2.54mm,blk Headers & Wire Housings 034 UNIV I/O 30DP SLOT Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board Ribboncableconn.male,34way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 34路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 034 UNIV I/O 30DP SLOT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH标准包装数量Trays

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
输入电阻5000连接器阻抗刺破式压接 (IDC)
最大额定电流1A连接器类型 - 电压输入方柱

机械参数

颜色Black间距2.54 mm
宽度8.38 mm [ .3299 in ]高度14.48 mm [ .5701 in ]
长度67.97 mm [ 2.676 in ]底座类型不带
包装方式Tray导线类型Ribbon Cable
壳体颜色黑色出线方向Without
电缆类型实心/绞线导线线规26-28 AWG
方向直角排间距0.100" (2.54mm)
端接方式IDT触头类型Male Pin
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型Universal I/O接触镀层Gold Over Nickel
安装样式不带排数2
驱动力不带插入件材料磷青铜
锁定特性不带触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性With
包装数量20面板安装类型通孔（SMT 兼容）
主要材料Pin尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规
端接排数IDC电缆端接方式IDC
端接样式IDC配接方向Without
触点数34绝缘材料 - 类型.81 – .97 mm [ .032 – .0381 in ]
位数34兼容外壳尺寸（如TM-700等）与母端插接
触头长度-柱信号（数据）安装孔直径带有
端子柱长度6.1 mm [ .24 in ]接触镀层厚度30µin (0.76µm)
外壳尺寸，连接器布局3.81 mm [ .15 in ]

产品信息

类型IDC Connector连接器性别M
系列AMP-LATCH产品特性Feed Through
极性带有盖类型是
制造商全称AMP-LATCH产品子类型Connectors
连接类型Ribbon Cable

环境参数

工作温度+105°C

文档与媒体

在线文档
5111448-8?RQPN=5111448-8
