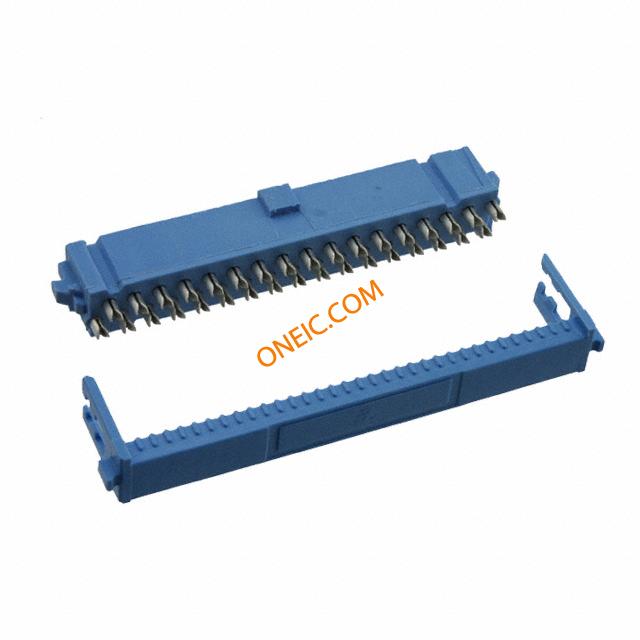

1-1658526-8

点击放大查看

1-1658526-8

制造商
TE Connectivity Ltd.
描述Headers & Wire Housings 34 POS RECPT 30 AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 34POS VERT GOLD Ribbon cable conn.rcpt.34way,2.54mm,blue Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Ribboncableconn.rcpt.34way,2.54mm,blue TE Connectivity AMP-LATCH 609 系列 2行 34路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-3430LF FEM SOCKT,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称116585268
产品类别Headers & Wire Housings标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能Unlatched最大额定电流1A

机械参数

颜色Blue深度7.05 mm
间距0.100" (2.54mm)高度12.37 mm
包装方式Bulk导线类型Ribbon Cable
壳体颜色蓝色出线方向Without
电缆类型带状电缆导线线规28-30 AWG
方向直角排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Center & Military第二连接器Without
外壳颜色Blue安装类型No
电缆端类型Without连接器类型AMP-LATCH
接触镀层Tin over Nickel安装样式Cable
排数2触头材料Beryllium Copper
壳体材料Thermoplastic Glass Reinforced总长度47.65 mm
安装特性Without主要材料Receptacle
端接排数IDC电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数34
位数34中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别Receptacle
系列AMP-LATCH产品特性Polarizing Key
制造商全称AMP-LATCH产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes

环境参数

工作温度+125°C

相关型号

1-1761685-1

1-1761685-1

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS VERT .100 GOLD Headers & Wire Housings IDC LOW PRO HDR 34P VERT SHT L Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 34P VERT SHT LAT

¥81.5320
详情
5111448-8

5111448-8

te connectivity / amp

Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 34POS UNIV I/O W/EARS Ribbon cable conn.male,34 way,2.54mm,blk Headers & Wire Housings 034 UNIV I/O 30DP SLOT Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board Ribboncableconn.male,34way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 34路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 034 UNIV I/O 30DP SLOT

¥30.2328
详情
1-1761607-1

1-1761607-1

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 34POS AMP-LATCH IDC Header Right Angle 34P Headers & Wire Housings 100X100 HDR 2X017P R/A LOW PROFILE Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK AMP-LATCH 34 Position Through-Hole Dual Row Right Angle Pin Header IDC LOW PRO HDR 34P RA LG LAT

¥23.3240
详情

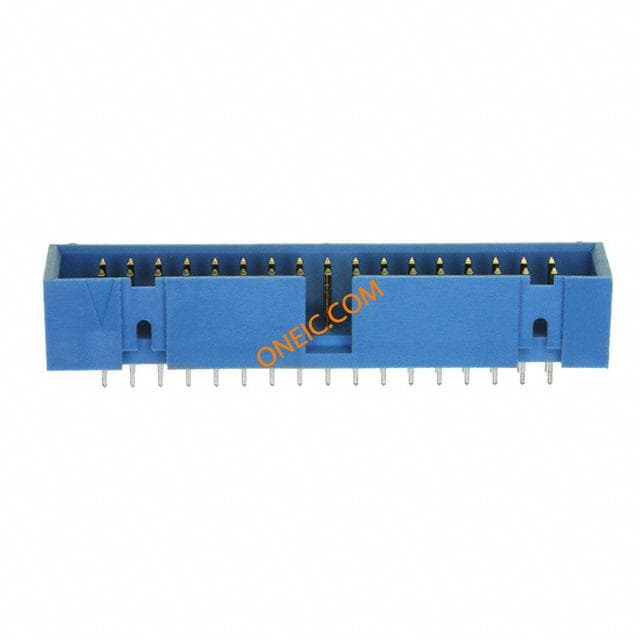

3-1761603-1

3-1761603-1

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 34P VERT BLUE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT BLUE

¥18.1200
详情
1-1761606-1

1-1761606-1

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 34POS Headers & Wire Housings 100X100 HDR 2X017P VERT LOW PROFILE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT LG LAT BLK

¥27.1800
详情
5102161-8

5102161-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 34P RA Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA

¥16.1840
详情
2-5499376-8

2-5499376-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS R/A .100 GOLD Headers & Wire Housings UNIV HDR 34P R/A BLU SHORT LATCH Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA SHT LAT BLUE

¥12.4916
详情
5103309-7

5103309-7

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS GOLD Headers & Wire Housings HDR VERT DOUBLE 34P low profile Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,AMP-LATCH,34POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 34P, 5103309-7, TE Connectivity A/L LOW PRO HDR 34P VERT BLACK

¥9.0600
详情

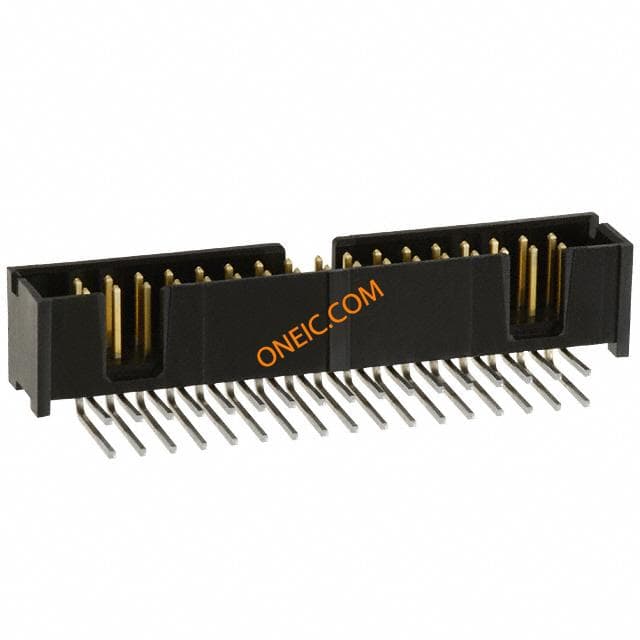

5103310-7

5103310-7

te connectivity / amp

Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS GOLD Headers & Wire Housings 100X100 HDR 2X017P R/A LOW PROFILE Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;34;Gold A/L LOW PRO HDR 34P RA BLACK

¥9.0600
详情
2-5499374-8

2-5499374-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD A/L UNIV HDR 34P VERT SHT LAT BLUE

¥13.0084
详情
5499786-8

5499786-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 34 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 34waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA LG LAT

¥22.1884
详情

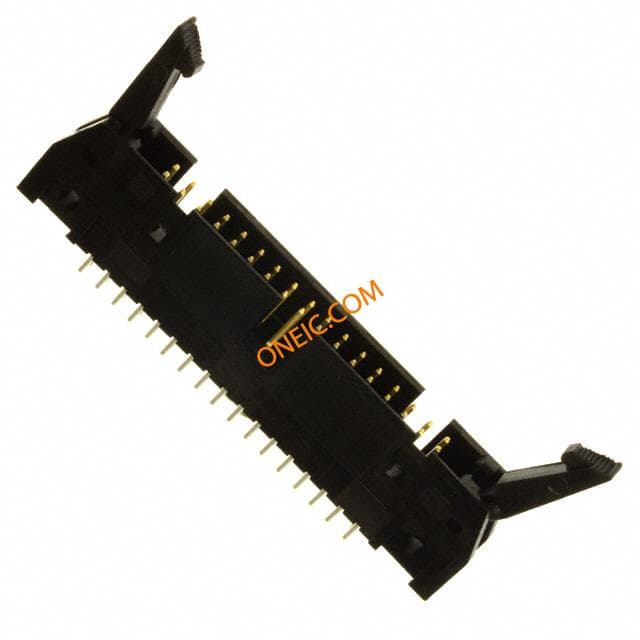

5102321-8

5102321-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD TE Connectivity 5102321 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X017P VRT EJE Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 034UNIVHDRSP4S30DPSTDL1 TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT

¥19.3120
详情
5102162-8

5102162-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 34Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA

¥15.9120
详情
3-1761609-1

3-1761609-1

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 34POS Headers & Wire Housings PIN HEADER 34P R/A Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Connector Ejector Header HDR 34 Positions 2.54mm IDC LOW PRO HDR 34P RA SHT LAT BLUE

¥24.2080
详情
1-1761608-1

1-1761608-1

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 34POS Headers & Wire Housings 100X100 HDR 2X017P VERT LOW PROFILE Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM IDCHDRS501W&W/O,IDCLOWPROHDR34PVERTSHTLATBLK TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT SHT L

¥22.3720
详情

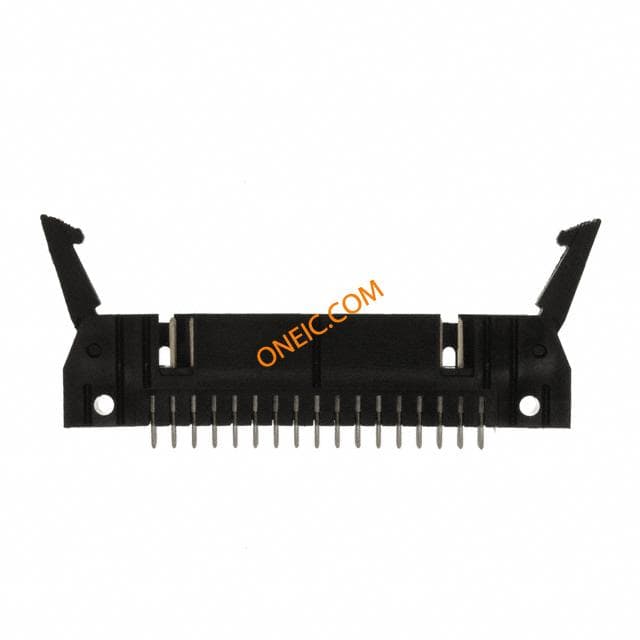

5499206-8

5499206-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,34POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 34P VERT LG LAT

¥21.0120
详情
5499923-8

5499923-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X017P VRT EJE Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT

¥17.8160
详情

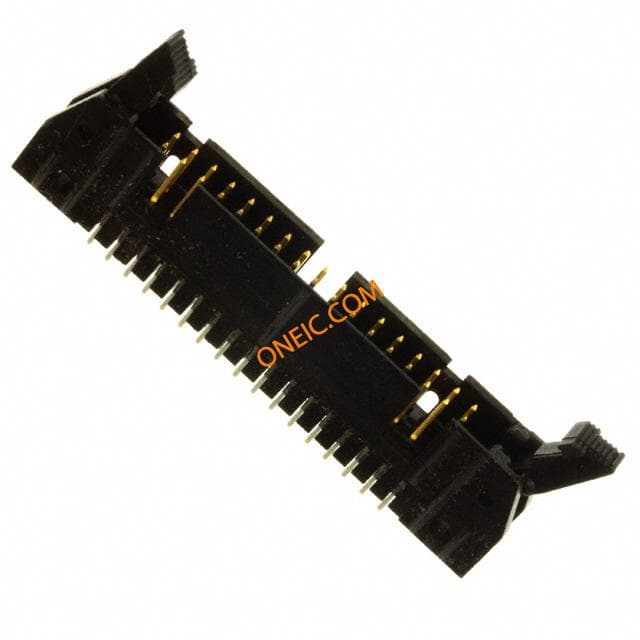

5499910-8

5499910-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD TE Connectivity 5499910 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 34 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,34POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT SHT LAT

¥18.1200
详情
5102159-8

5102159-8

te connectivity / amp

Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 15AU R/A W/OUT LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;34;0.100x0.100in.;RightAngle(PCB) TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA

¥9.0600
详情

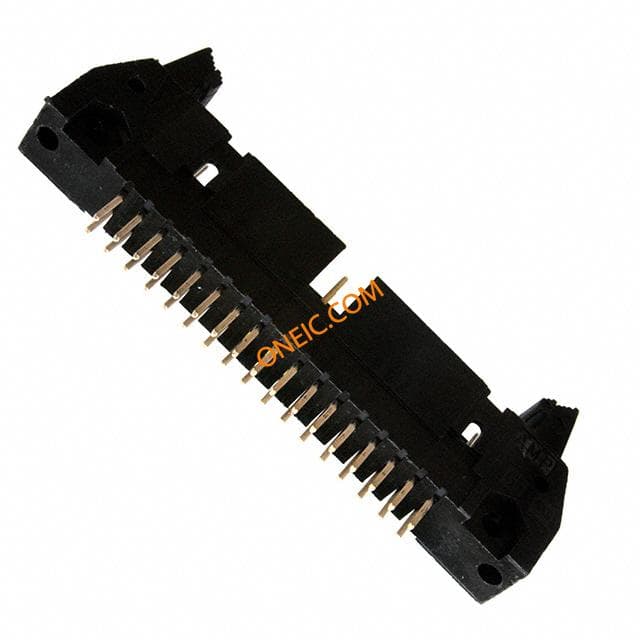

5499374-8
