点击放大查看

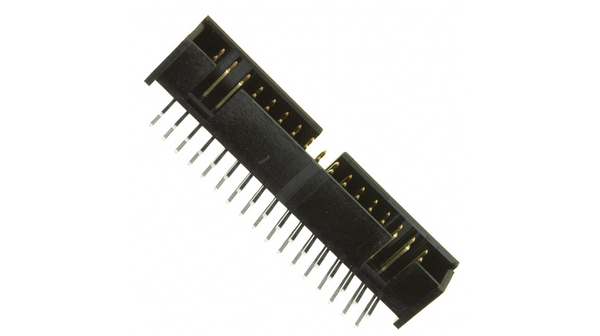

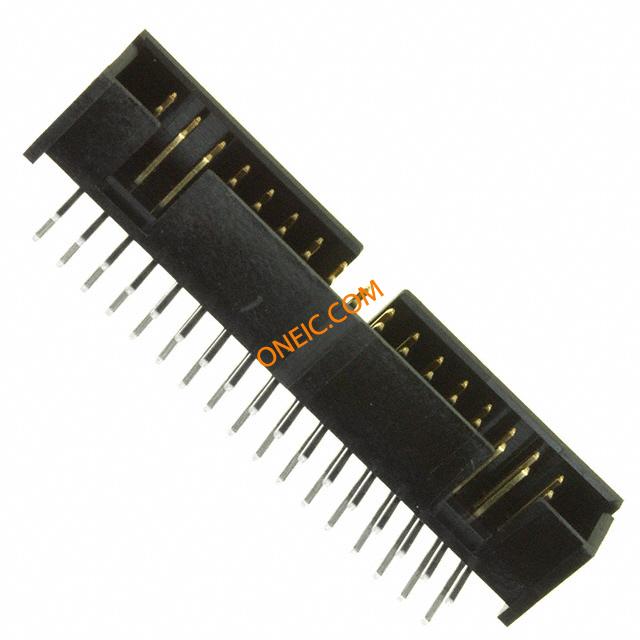

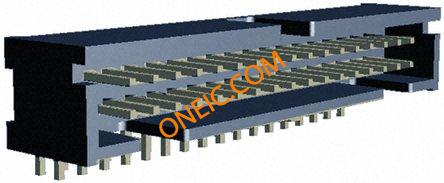

5103311-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 34P low profile Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM Headerhoriz34way2.54mmAmpLatch Pin header DIN 41651 34P, 5103311-7, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 34P RA BLACK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85411000 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 1A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.005 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 主要材料 | Connector |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 34 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 34 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 有铅工艺兼容 | :Yes |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
