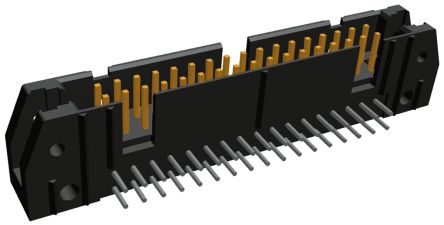

5102160-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;34;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 34P, 5102160-8, TE Connectivity TE Connectivity AMP-LATCH 系列 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | 1 | 额定电压 | 250 V 交流 |
| 极数 | 34 | 供电电压 | 250 |
| 输入电阻 | 1000 – 5000 | 连接器阻抗 | 弹出锁闩 |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.94 mm [ .55 in ] | 长度 | 62.48 mm [ 2.46 in ] |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] | 引脚样式 | 直角 |
| 方向 | 直角 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.100" (2.54mm) |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 安装样式 | 标准 |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外壳材料（壳体） | 4 面 | 驱动力 | 不带 |
| 电路板厚度 | 1.57 [0.062] | 插入件材料 | 磷青铜 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 50 |
| 面板安装类型 | 通孔 | 尺寸/外形 | 0.64 [.025] |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 板面高度 | 0.240" (6.10mm) | 配接方向 | With |
| 触点数 | 34 | 位数 | 34 |
| 第一连接器极性 | Male | 兼容外壳尺寸（如TM-700等） | AMP 锁闩母端 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 30µin (0.76µm) | 每排/每行位置数 | All |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 覆盖范围 | 覆盖 |
| 极性 | 带有 | 产品子类型 | Headers |
| 其他规格 | Without | 输出配置 | Through Hole, Right Angle |
| 加载位置数 | All | ||
环境参数
| 额定等级 | 1 | 温度额定值 | Standard |
| 工作温度 | -55...+105 °C | 封装热阻 | 1.57 mm [ .062 in ] |
相关型号
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
1658622-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 34P Headers & Wire Housings .1CL IDC REC 2X17P C&M 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,34pos. 34 NOVO MIL/CTR 30DP,LEAD FREE
1658620-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 34 NOVO Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,34POSITION,WITHMATINGPOLARIZATION 34 NOVO MIL 15DP, LEAD FREE
1658621-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 34P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL 15 GOLD 34way polarised skt w/o strain relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 34WAY Connector,Receptacle;Novo;34;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:34; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 34P, 1658621-8, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 34 NOVO MIL/CTR 15DP,LEAD FREE
1658623-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS GOLD AMP-LATCHConnect,ReceptacleforRibbonCbl Headers & Wire Housings .1CL IDC REC 2X17P MIL 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM AMP-LATCHConnector,ReceptacleforRibbonCable,NOVO,34Positions 34 NOVO MIL 30DP, LEAD FREE
487223-9
te connectivity / amp

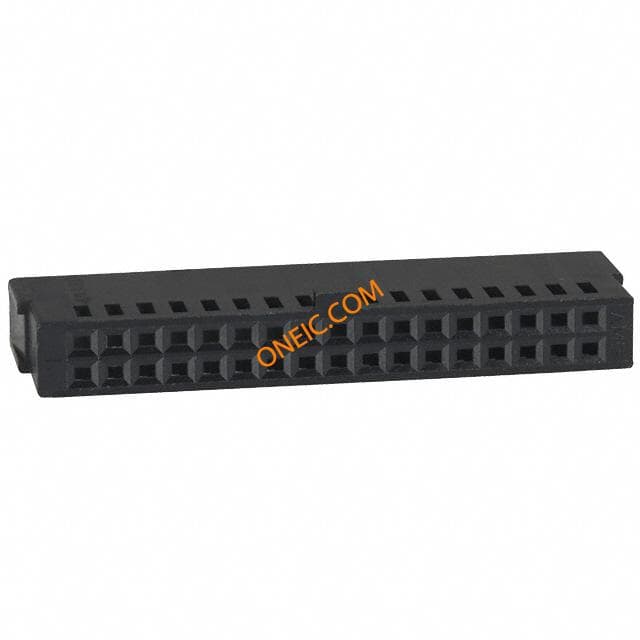

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 034 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 34 HSG RCPT 100CL DR Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = Standard34 PositionsNumber of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
1825851-1
te connectivity / amp
Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Headers & Wire Housings EJECTOR LATCH AMPMODU Mod IV, V CONN LATCH LOCKING FOR .100 HDRS Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Product Highlights:Locking LatchSearch Keywords:board to board, AMPMODU, pcb connectors, AMPLATCH UNIVERSAL HEADER LOCKING LATCH TE Connectivity PCB 针座锁定闩锁 AMPMODU MOD IV LATCH for AMPLA
1-1658526-9
TE Connectivity / AMP
Headers & Wire Housings 34 POS RECPT 30 AU W/STRN RLF Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 34POS 34 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 34WAY 609-3441LF FEM SOCKT,LEAD FREE
1-1658526-8
TE Connectivity / AMP

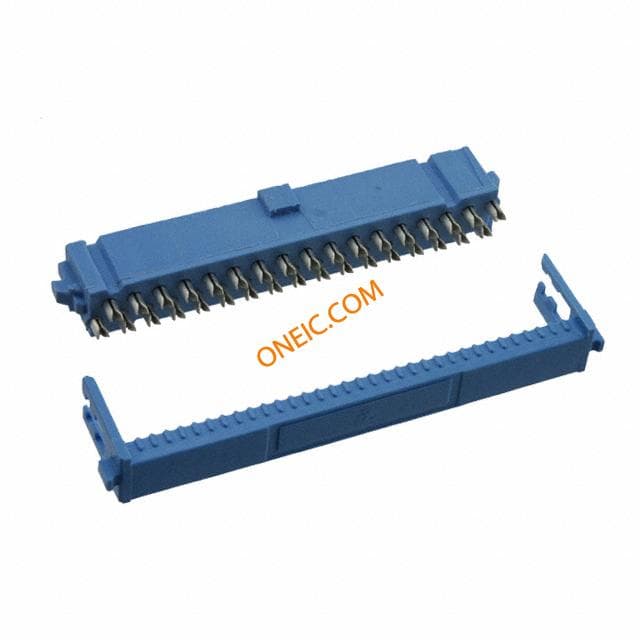

Headers & Wire Housings 34 POS RECPT 30 AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 34POS VERT GOLD Ribbon cable conn.rcpt.34way,2.54mm,blue Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Ribboncableconn.rcpt.34way,2.54mm,blue TE Connectivity AMP-LATCH 609 系列 2行 34路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-3430LF FEM SOCKT,LEAD FREE
