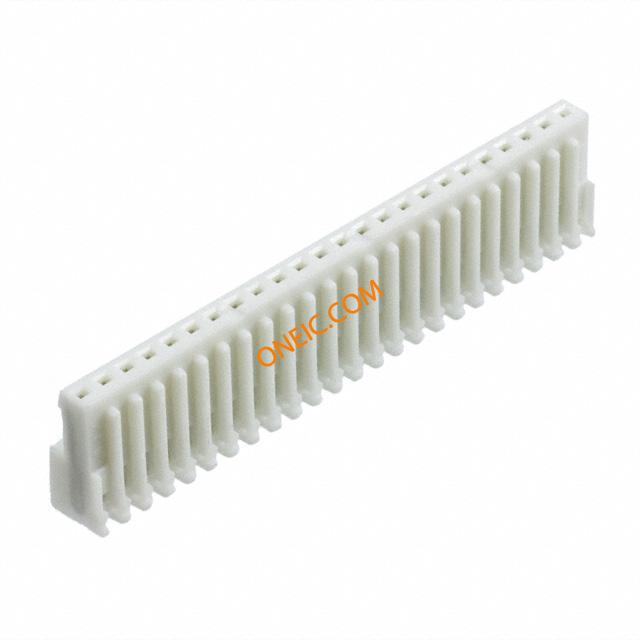

5-640441-4

点击放大查看

5-640441-4

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 24POS 24AWG MTA-100 Headers & Wire Housings 24P MTA100 CONN ASSY WHT Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 24Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 24P MTA100 CONN ASSY WHT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称56404414标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色White间距2.54 mm
高度6.99 mm [ .275 in ]长度60.96 mm [ 2.4 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规24 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数24
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数24
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.2² [24]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None
