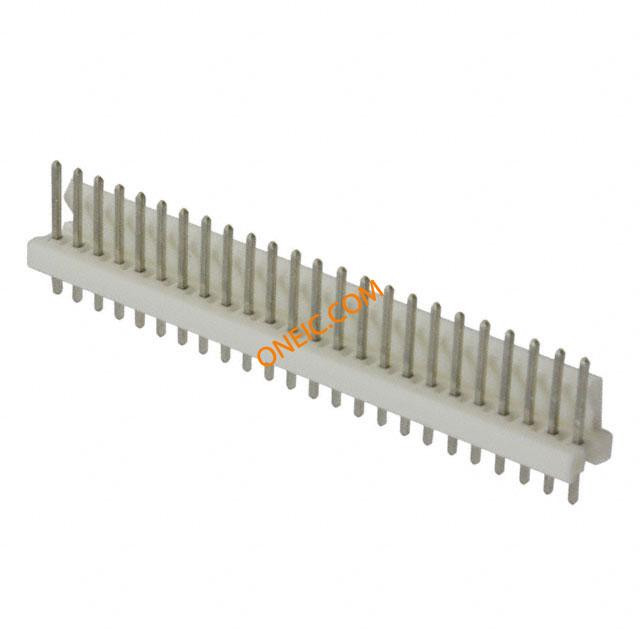

2-640456-4

点击放大查看

2-640456-4

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 24 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 24POS .100 TIN Headers & Wire Housings MTA 100 F/L ST 24P Conn Wire to Board HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 24Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 24P MTA100 HDR ASSY F/L SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
高度7.87 mm [ .31 in ]长度60.96 mm [ 2.4 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin极化Polarizing Slot
第二连接器With触点形状Square
外壳颜色White安装类型Vertical
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式不带排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料Polyester安装特性Without
包装数量1面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数24端接表面处理不带
位数24后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Without
端子柱长度3.56 [0.140]接触镀层厚度3.81 µm [ 150 µin ]
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
2-640456-4
在线文档
2-640456-4
