点击放大查看

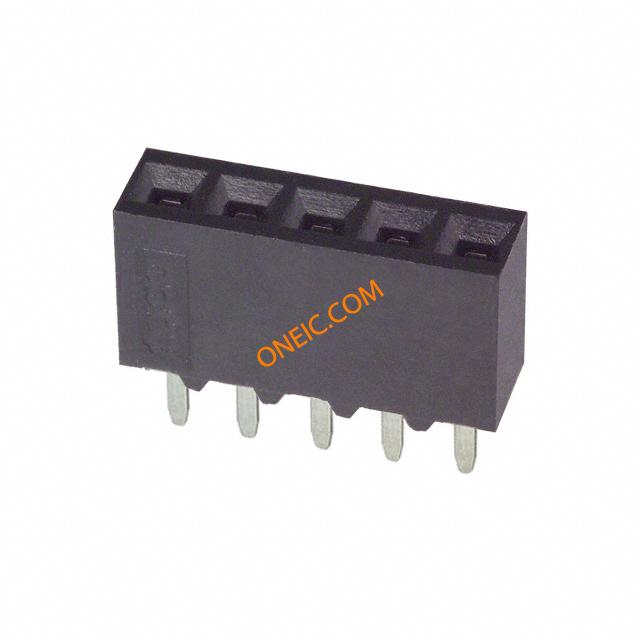

5-535541-3

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 5POS .100 VERT GOLD Headers & Wire Housings RECEPT 5POS VERT .100 AU Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 5WAY, 1ROW 05 MODIV VRT SR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	45

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

额定电压

750 V

最大额定电流

2 A

机械参数

颜色	Black	间距	2.54 mm
重量	0.00045	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	1
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
端接样式	Through Hole	触点数	5
接触件端接	:Through Hole Vertical	位数	5
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	RCP
系列	AMPMODU MOD IV	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

TE.Connect?C=1&PN=535541-3&M=BYPN&LG=1&I=13

在线文档

5-535541-3?RQPN=5-535541-3
