104878-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 03/05 MODII HDR SRST B/A .100 CONN HEADER B/A 5POS VERT GOLD 03/05 MODII HDR SRST B/A .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 连接器类型 - 电压输入 | 2.54 – 5.08 µm [ 100 – 200 µin ] | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 第一连接器 | 否 | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold Over Nickel |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 铜合金 | 触头材料 | 哑光锡铅 |
| 壳体材料 | 热塑性 | 框架材料 | 镍 |
| 包装数量 | 480 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | 插针 | 第一连接器类型 | 分离 |
| 外径 | .64 mm [ .025 in ] | 触点数 | 5 |
| 端接表面处理 | 不带 | 位数 | 5 |
| 兼容外壳尺寸（如TM-700等） | 配合母端 | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 3.05 mm [ .12 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
| 每排/每行位置数 | 3, 4 | 第一连接器安装特征 | 是 |
| 接触件镀层 - 插柱（配合端） | 哑光 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 可密封 | 否 | 产品子类型 | Headers |
| 加载位置数 | 8 | ||
环境参数
| 密封等级 | 不带 | 测试温度 | 否 |
| 结工作温度 | 否 | ||
文档与媒体
相关型号
146138-3
te connectivity / amp
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT MOD IV 5POS SL GOLD Headers & Wire Housings 05 MODIV VRT SR CE 100/115 .100 inch AMPMODU Receptacles Product Highlights:ConnectorMod IV5 PositionsNumber of Rows = SingleLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
535676-4
te connectivity / amp

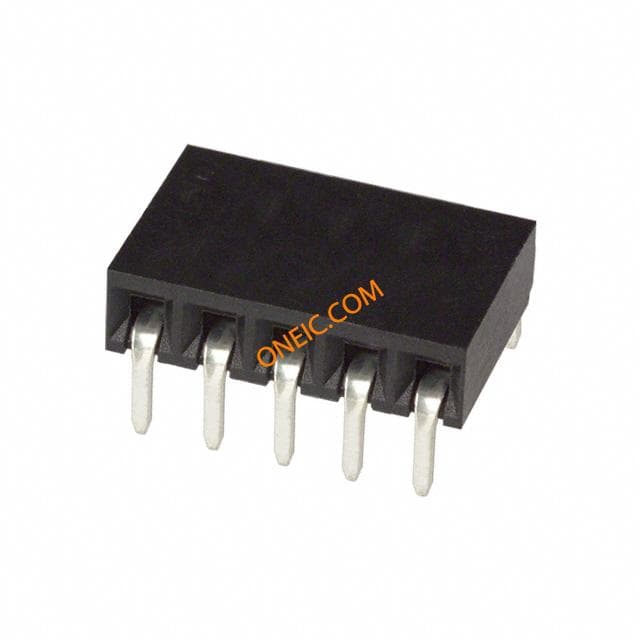

Conn Socket Strip SKT 5 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 5POS .100 RT/ANG AU Headers & Wire Housings RECEPT 5POS .100 R/A AU
